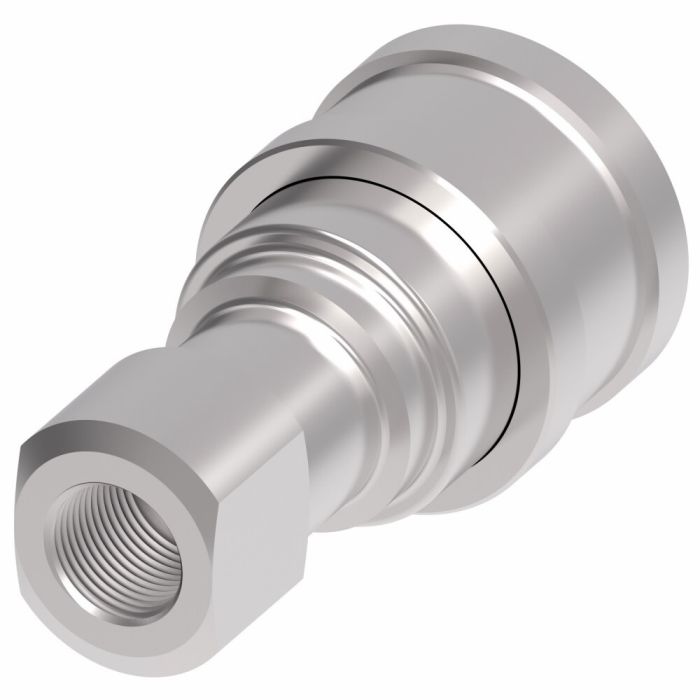

5600 Series Industrial Interchange Quick Disconnect, Female Half, -10 Coupling, 3/4-14 Female Pipe

Ask A Question

Description & Features

The 5600 Series Industrial Interchange Quick Disconnect Female Half -10 Coupling 3/4-14 Female Pipe offers efficient hydraulic fluid transfer making it ideal for agricultural and construction equipment as well as in-plant manufacturing. Designed by Danfoss Power Solutions this coupling features a PUSH-PULLtrade; ball latch design for quick connection and disconnection.

The self-sealing poppet valve ensures excellent high and low-pressure sealing. This coupling aligns dimensionally with ISO standard 7241/1 Series A offering minimal pressure drop due to streamlined valving. The standard Buna-N seal material and zinc-plated steel body with zinc poppet guides ensure reliability and durability in demanding environments.

Temperature performance ranges from -40deg;F making it suitable for various industrial applications. With a rated flow of 12 and a fluid loss of 2.80 cubic centimeters this quick disconnect coupling is built for efficient and minimal fluid loss operations.

MPN: 5601-12-10S

Supplier Part Number: 5601-12-10S

Specifications

A
2.91
Air Inclusion Max
2.80 Cubic_centimeter
Application
Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles
B
1.52
Coupling Size
-10
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.75
End Size 2
0.75
End Type 1
Push to Connect
End Type 2
NPT
Fluid Loss
2.80 Cubic_centimeter
Minimum Working Temperature
-40
Rated Flow
12
Rated Flow
12
Seal Material
Buna-N
Seal Part if Included
22550-211
Supplier Part Number
5601-12-10S
Thread 1
3/4-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1BS93, Alternate Part Number MI-00303435, Alternate Part Number MINO-00015F52267, Alternate Part Number MINO-00402X02845
Product Weight
0.72 lbs

Related Documents

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Action
5600 Series Industrial Interchange Quick Disconnect, Female Half, -04 Coupling, 1/4-18 Female Pipe

5601-4-4S 5600 Series Quick Disconnect

-04

1/4-18

Buna-N

1.81

1.08

5600 Series Industrial Interchange Quick Disconnect, Female Half, -06 Coupling, 3/8-18 Female Pipe

5601-6-6S 5600 Series Quick Disconnect

-06

3/8-18

Buna-N

2.09

1.27

5600 Series Industrial Interchange Quick Disconnect, Female Half, -10 Coupling, 1/2-14 Female Pipe

5601-8-10S 5600 Series Quick Disconnect

-10

1/2-14

Buna-N

2.76

1.52

5600 Series Industrial Interchange Quick Disconnect, Female Half, -10 Coupling, 3/4-14 Female Pipe

5601-12-10S 5600 Series Quick Disconnect

-10

3/4-14

Buna-N

2.91

1.52

5600 Series Industrial Interchange Quick Disconnect, Female Half, -12 Coupling, 3/4-14 Female Pipe

5601-12-12S 5600 Series Quick Disconnect

-12

3/4-14

Buna-N

3.25

1.84

5600 Series Industrial Interchange Quick Disconnect, Female Half, -16 Coupling, 1-11-1/2 Female Pipe

5601-16-16S 5600 Series Quick Disconnect

-16

1-11-1/2

Buna-N

4.09

2.15

5600 Series Industrial Interchange Quick Disconnect, Female Half, -04 Coupling, 1/8-27 Female Pipe

5601-2-4S 5600 Series Quick Disconnect

-04

1/8-27

Buna-N

1.81

1.08

Product Questions & Answers (2)

Question by: Todd P on Jun 9, 2025, 8:32 PM
got a -10 coupling system and need the female socket piece, this one gonna match up with standard industrial interchange fittings?
Answer by: Customer Support on Jun 11, 2025, 7:09 PM
Yes, this female half works with any standard industrial interchange quick disconnect system using -10 coupling size. The 5600 series follows universal interchange specifications, so it'll connect properly with plugs from other manufacturers that meet the same industrial interchange standards.
Question by: Marvin P on May 14, 2025, 12:14 PM
Do I need any special tools to connect the 5600 Series Quick Disconnect Coupling to my setup?
Answer by: Customer Support on May 16, 2025, 11:37 AM
You won't need any special tools to connect the 5600 Series Quick Disconnect Coupling. It's designed to easily attach to a 3/4-14 female pipe, making it straightforward for most setups. Just ensure your existing connections are compatible with the coupling size.
