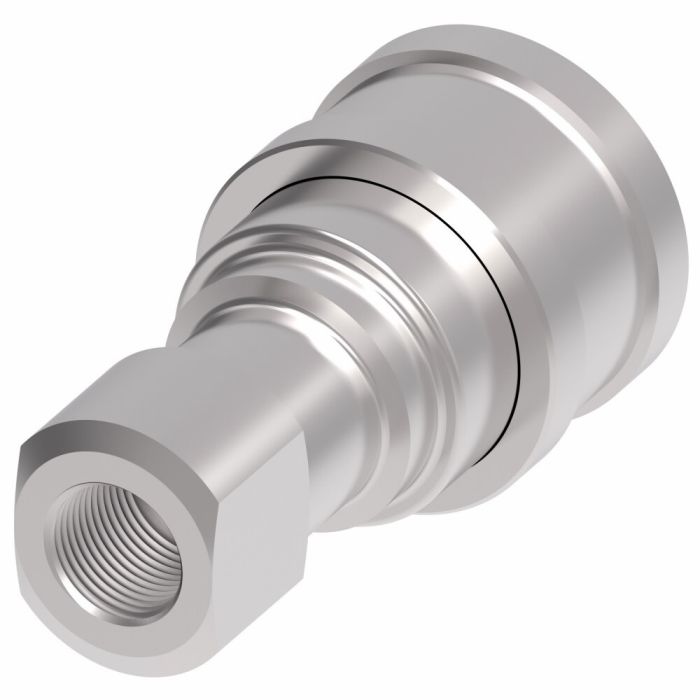

main product photo

5600 Series Industrial Interchange Quick Disconnect, Female Half, -12 Coupling, 3/4-14 Female Pipe

Ask A Question

Description & Features

Danfoss Power Solutions (II LLC Aeroquip) presents the 5600 Series Industrial Interchange Quick Disconnect Female Half -12 Coupling 3/4-14 Female Pipe. Specifically designed for hydraulic fluid transfer in demanding environments it is well-suited for agricultural equipment construction machinery in-plant manufacturing and maintenance vehicles such as dump trucks and snow plows.

The Push-to-Connect design facilitates rapid and effortless connection and disconnection. Engineered to conform dimensionally to ISO standard 7241/1 Series A this coupling features a self-sealing poppet valve that ensures reliable sealing under both high and low pressure conditions. The streamlined valving system minimizes pressure drop optimizing performance.

Constructed from zinc-plated steel with zinc poppet guides and available with standard seal materials such as Buna-N EPR and Vitonreg; this quick disconnect coupling offers durability and versatility. The coupling size is -12 with both ends featuring a female gender and 3/4-14 thread type. With a maximum air inclusion of 10.00 cubic centimeters and fluid loss limited to 8.20 cubic centimeters this product is a dependable choice for fluid transfer applications.

MPN: EAR99

Supplier Part Number: 5601-12-12S

Specifications

A
3.25
Air Inclusion Max
10.00 Cubic_centimeter
Application
Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles
B
1.84
Coupling Size
-12
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.75
End Size 2
0.75
End Type 1
Push to Connect
End Type 2
NPT
Fluid Loss
8.20 Cubic_centimeter
Minimum Working Temperature
-40
Rated Flow
28
Rated Flow
28
Seal Material
Buna-N
Supplier Part Number
5601-12-12S
Thread 1
3/4-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1BS94, Alternate Part Number MI-00329959, Alternate Part Number MINO-00015F70098
Product Weight
1.01 lbs

Related Documents

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Action
5600 Series Industrial Interchange Quick Disconnect, Female Half, -04 Coupling, 1/4-18 Female Pipe

5601-4-4S 5600 Series Quick Disconnect

-04

1/4-18

Buna-N

1.81

1.08

5600 Series Industrial Interchange Quick Disconnect, Female Half, -06 Coupling, 3/8-18 Female Pipe

5601-6-6S 5600 Series Quick Disconnect

-06

3/8-18

Buna-N

2.09

1.27

5600 Series Industrial Interchange Quick Disconnect, Female Half, -10 Coupling, 1/2-14 Female Pipe

5601-8-10S 5600 Series Quick Disconnect

-10

1/2-14

Buna-N

2.76

1.52

5600 Series Industrial Interchange Quick Disconnect, Female Half, -10 Coupling, 3/4-14 Female Pipe

5601-12-10S 5600 Series Quick Disconnect

-10

3/4-14

Buna-N

2.91

1.52

5600 Series Industrial Interchange Quick Disconnect, Female Half, -12 Coupling, 3/4-14 Female Pipe

5601-12-12S 5600 Series Quick Disconnect

-12

3/4-14

Buna-N

3.25

1.84

5600 Series Industrial Interchange Quick Disconnect, Female Half, -16 Coupling, 1-11-1/2 Female Pipe

5601-16-16S 5600 Series Quick Disconnect

-16

1-11-1/2

Buna-N

4.09

2.15

5600 Series Industrial Interchange Quick Disconnect, Female Half, -04 Coupling, 1/8-27 Female Pipe

5601-2-4S 5600 Series Quick Disconnect

-04

1/8-27

Buna-N

1.81

1.08

Product Questions & Answers (1)

Question by: Tony H on Apr 7, 2025, 11:34 AM
does this thing work with standard NPT fittings or do I need something special on the pipe end?
Answer by: Customer Support on Apr 8, 2025, 8:33 PM
The pipe end on this coupling is 3/4-14 female NPT, so it threads onto standard 3/4-14 male NPT fittings without any adapters. The connect side uses a push-to-connect ball latch, so that end just needs a compatible male half from the same 5600 Series or another ISO 7241/1 Series A plug. As long as your pipe side is 3/4-14 NPT male, you're good to go.
