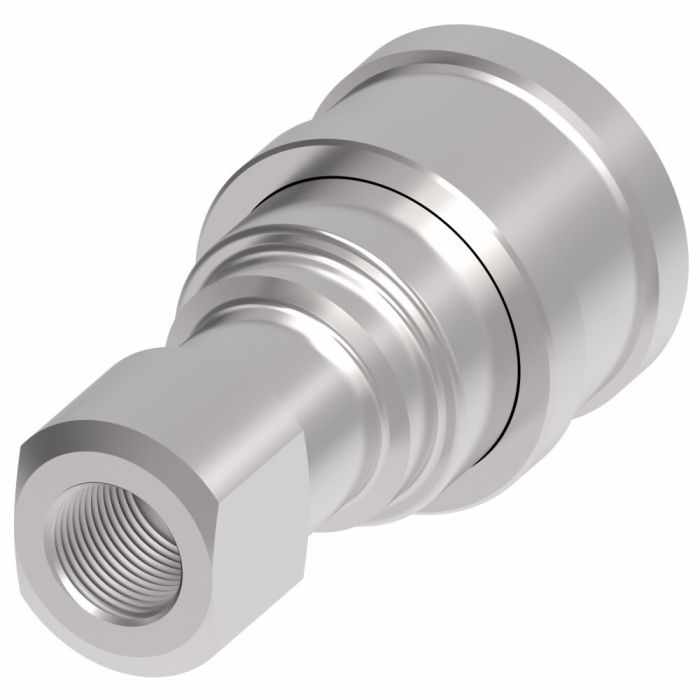

5600 Series Industrial Interchange Quick Disconnect, Female Half, -10 Coupling, 1/2-14 Female Pipe

Ask A Question

Description & Features

The 5600 Series Industrial Interchange Quick Disconnect, Female Half, -10 Coupling, 1/2-14 Female Pipe is designed for efficient hydraulic fluid transfer in demanding industrial applications.

The unit features a PUSH-PULLtrade; ball latch design, enhancing the ease of fluid line connections and disconnections. The self-sealing poppet valve ensures high and low pressure sealing, minimizing fluid loss to 2.80 cubic centimeters.

Constructed from zinc plated steel, the coupling conforms to ISO standard 7241/1 Series A, ensuring dimensional accuracy. The streamlined valving structure reduces pressure drops, providing a rated flow of 12. The Buna-N seal material and standard body material deliver robust, long-lasting performance, fit for agricultural, construction, and in-plant manufacturing equipment.

Minimum operating temperature reaches as low as -40, suitable for a range of environmental conditions. The end connections are 1/2-14 NPT with push to connect functionality, making it compatible with various industrial setups.

Supplier Part Number: 5601-8-10S

MPN: C1BS99

Specifications

A
2.76
Air Inclusion Max
2.80 Cubic_centimeter
Application
Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles
B
1.52
Coupling Size
-10
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.50
End Size 2
0.50
End Type 1
Push to Connect
End Type 2
NPT
Fluid Loss
2.80 Cubic_centimeter
Minimum Working Temperature
-40
Rated Flow
12
Rated Flow
12
Seal Material
Buna-N
Seal Part if Included
22550-211
Supplier Part Number
5601-8-10S
Thread 1
1/2-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number 20011512, Alternate Part Number C1BS99, Alternate Part Number MI-06910887, Alternate Part Number MINO-00015X45488
Product Weight
0.58 lbs

Related Documents

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Action
5600 Series Industrial Interchange Quick Disconnect, Female Half, -04 Coupling, 1/4-18 Female Pipe

5601-4-4S 5600 Series Quick Disconnect

-04

1/4-18

Buna-N

1.81

1.08

5600 Series Industrial Interchange Quick Disconnect, Female Half, -06 Coupling, 3/8-18 Female Pipe

5601-6-6S 5600 Series Quick Disconnect

-06

3/8-18

Buna-N

2.09

1.27

5600 Series Industrial Interchange Quick Disconnect, Female Half, -10 Coupling, 1/2-14 Female Pipe

5601-8-10S 5600 Series Quick Disconnect

-10

1/2-14

Buna-N

2.76

1.52

5600 Series Industrial Interchange Quick Disconnect, Female Half, -10 Coupling, 3/4-14 Female Pipe

5601-12-10S 5600 Series Quick Disconnect

-10

3/4-14

Buna-N

2.91

1.52

5600 Series Industrial Interchange Quick Disconnect, Female Half, -12 Coupling, 3/4-14 Female Pipe

5601-12-12S 5600 Series Quick Disconnect

-12

3/4-14

Buna-N

3.25

1.84

5600 Series Industrial Interchange Quick Disconnect, Female Half, -16 Coupling, 1-11-1/2 Female Pipe

5601-16-16S 5600 Series Quick Disconnect

-16

1-11-1/2

Buna-N

4.09

2.15

5600 Series Industrial Interchange Quick Disconnect, Female Half, -04 Coupling, 1/8-27 Female Pipe

5601-2-4S 5600 Series Quick Disconnect

-04

1/8-27

Buna-N

1.81

1.08

Product Questions & Answers (4)

Question by: Shane C on Oct 30, 2025, 11:08 AM
Push-to-connect on the socket end and female pipe on the other, does that mean it'll thread straight into a 1/2 NPT port on my equipment?
Answer by: Customer Support on Oct 31, 2025, 8:46 PM
That's exactly right. The body end uses a 1/2-14 female NPT thread, so it screws onto a standard 1/2-inch male NPT fitting or port. The other end is the push-to-connect socket side of the quick disconnect, which is where your male half of the coupling locks in. No adapters needed if your port is already 1/2 NPT male.
Question by: Patty C on Aug 30, 2025, 5:49 PM
trying to swap out a worn socket on a -10 line. is this the female half with 1/2-14 female pipe threads?
Answer by: Customer Support on Aug 31, 2025, 6:13 PM
This is the female (socket) half in the 5600 Series with a -10 coupling size and a 1/2-14 NPT female pipe thread connection.
Question by: Lynn H on Jul 4, 2025, 3:32 PM
Will this quick disconnect work with standard hydraulic setups?
Answer by: Customer Support on Jul 6, 2025, 6:42 AM
This unit uses 1/2-14 NPT end connections and push-to-connect functionality, making it compatible with various industrial setups.
Question by: Glen W on Jul 24, 2025, 6:45 AM
does this thing work with standard NPT fittings or do I need something special to hook it up?
Answer by: Customer Support on Jul 25, 2025, 6:47 PM
The female pipe end on this coupling is 1/2-14 NPT, so it threads right onto standard NPT connections without any adapter needed. The other end uses a push-to-connect style, which is how it mates up with the male half of the quick disconnect. As long as your hydraulic connections is running 1/2-14 NPT on the pipe side, you're in good shape.
