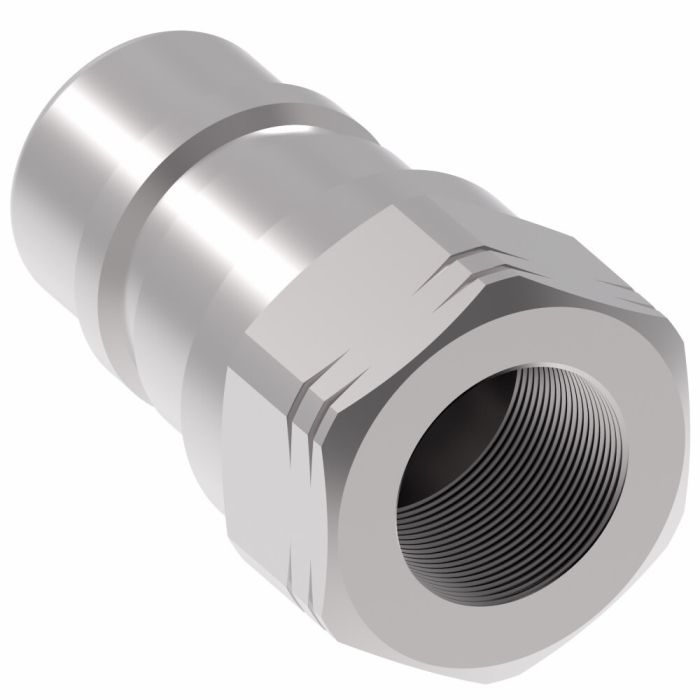

5600 Series Industrial Interchange Quick Disconnect, Male Half, -10 Coupling, 3/4-14 Female Pipe

Ask A Question

Description & Features

Description & Features

The Danfoss / Eaton 5600 Series Quick Disconnect Couplings Plug is designed for efficient fluid management in hydraulic systems. This male half connector features a PUSH-PULLtrade; ball latch design for secure and quick operations reducing downtime in applications like agricultural equipment and construction machinery.

The self-sealing poppet valve offers reliable high and low pressure sealing. The coupling adheres to ISO standard 7241/1 Series A ensuring compatibility and quality.

Streamlined valving minimizes pressure drop optimizing fluid flow for enhanced performance. Constructed with zinc plated steel and zinc poppet guides this coupling is durable and reliable even in demanding environments.

Buna-N seal material ensures compatibility with various fluids while the 3/4-14 NPT female pipe thread provides a secure and leak-proof connection. Rated for a maximum flow of 12 GPM this coupling is suitable for a range of industrial applications including in-plant manufacturing and maintenance vehicles.

MPN: C1BT11

Supplier Part Number: 5602-12-10S

Specifications

A
2.03
Air Inclusion Max
2.80 Cubic_centimeter
Application
Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles
Coupling Size
-10
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.75
End Size 2
0.75
End Type 1
Push to Connect
End Type 2
NPT
Fluid Loss
2.80 Cubic_centimeter
Minimum Working Temperature
-40
Rated Flow
12
Rated Flow
12
Seal Material
Buna-N
Seal Part if Included
21016-10S
Supplier Part Number
5602-12-10S
Thread 1
3/4-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1BT11, Alternate Part Number MI-00299096, Alternate Part Number MINO-00015F47519, Alternate Part Number MINO-00402X02850
Product Weight
0.34 lbs

Related Documents

Similar Products

Model Number Coupling Size Thread 1 Seal Material A Price Action
5600 Series Industrial Interchange Quick Disconnect, Male Half, -12 Coupling, 3/4-14 Female Pipe

5602-12-12S 5600 Series Quick Disconnect

-12

3/4-14

Buna-N

2.28

5600 Series Industrial Interchange Quick Disconnect, Male Half, -04 Coupling, 1/4-18 Female Pipe

5602-4-4S 5600 Series Quick Disconnect

-04

1/4-18

Buna-N

1.24

5600 Series Industrial Interchange Quick Disconnect, Male Half, -06 Coupling, 3/8-18 Female Pipe

5602-6-6S 5600 Series Quick Disconnect

-06

3/8-18

Buna-N

1.4

5600 Series Industrial Interchange Quick Disconnect, Male Half, -10 Coupling, 1/2-14 Female Pipe

5602-8-10S 5600 Series Quick Disconnect

-10

1/2-14

Buna-N

1.89

5600 Series Industrial Interchange Quick Disconnect, Male Half, -10 Coupling, 3/4-14 Female Pipe

5602-12-10S 5600 Series Quick Disconnect

-10

3/4-14

Buna-N

2.03

5600 Series Industrial Interchange Quick Disconnect, Male Half, -16 Coupling, 1-11-1/2 Female Pipe

5602-16-16S 5600 Series Quick Disconnect

-16

1-11-1/2

Buna-N

2.77

5600 Series Industrial Interchange Quick Disconnect, Male Half, -04 Coupling, 1/8-27 Female Pipe

5602-2-4S 5600 Series Quick Disconnect

-04

1/8-27

Buna-N

1.17

Product Questions & Answers (2)

Question by: Stan F on Nov 26, 2025, 1:02 PM
Got a -10 coupling size here but need to hook it up to 3/4-14 female pipe thread - will this male half work for that setup?
Answer by: Customer Support on Nov 28, 2025, 7:56 AM
Absolutely, that's exactly what this Hansen 5600 series male half is built for. The -10 coupling pairs with the female half of the quick disconnect system, while the 3/4-14 female pipe thread end connects directly to your 3/4-14 male pipe fitting. It's part of the industrial interchange standard, so you'll get reliable connection and disconnection under pressure when you need it.
Question by: Travis M on Jan 22, 2026, 7:04 PM
How do I know if this quick disconnect coupling will fit my existing setup?
Answer by: Customer Support on Jan 24, 2026, 1:01 PM
This 5600 Series Industrial Interchange Quick Disconnect, Male Half, is designed to connect with a 3/4-14 female pipe. You'll want to check your current setup to ensure the thread size matches. If everything lines up, it should fit just fine.
