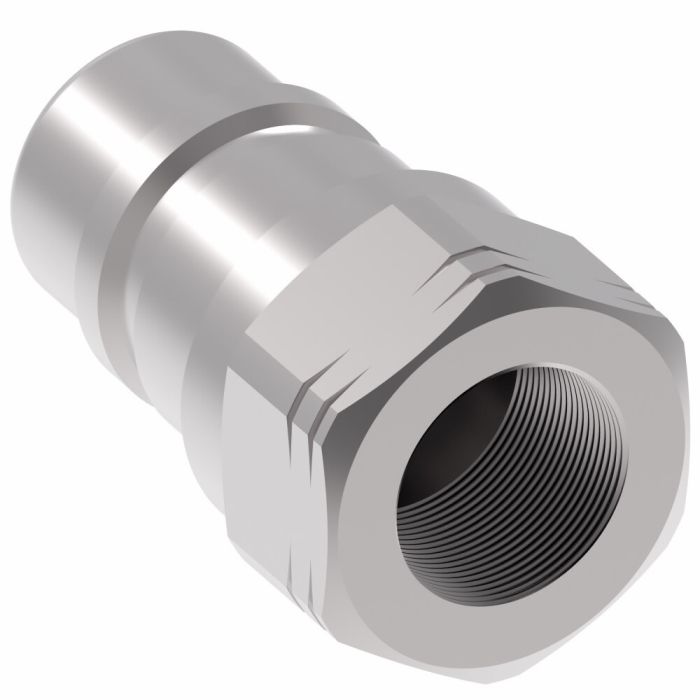

5600 Series Industrial Interchange Quick Disconnect, Male Half, -12 Coupling, 3/4-14 Female Pipe

Ask A Question

Description & Features

The 5600 Series Industrial Interchange Quick Disconnect, Male Half, -12 Coupling, 3/4-14 Female Pipe offers robust performance for hydraulic fluid transfer applications.

This coupling features a PUSH-PULLtrade; ball latch design, ensuring efficient connection and disconnection. The self-sealing poppet valve excels in both high and low-pressure sealing environments.

Engineered in compliance with ISO standard 7241/1 Series A, this product is ideal for usage in agricultural equipment, construction machinery, in-plant manufacturing, and maintenance vehicles. The streamlined valving minimizes pressure drop, optimizing fluid transfer efficiency.

Durable with its zinc-plated steel body and zinc poppet guides, this coupling also includes standard seal materials such as Buna-N, EPR, and Vitonreg;.

Rated to handle a flow rate of up to 28 cubic centimeters per minute, it operates effectively within a temperature range from -40deg;C. The male push-to-connect end and female NPT threaded end ensure easy installation and reliable performance.

MPN: 5602-12-12S

Supplier Part Number: 5602-12-12S

Specifications

A
2.28
Air Inclusion Max
10.00 Cubic_centimeter
Application
Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles
Coupling Size
-12
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.75
End Size 2
0.75
End Type 1
Push to Connect
End Type 2
NPT
Fluid Loss
8.20 Cubic_centimeter
Minimum Working Temperature
-40
Rated Flow
28
Rated Flow
28
Seal Material
Buna-N
Supplier Part Number
5602-12-12S
Thread 1
3/4-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1BT12, Alternate Part Number MI-00331591, Alternate Part Number MINO-00015F71929
Product Weight
0.49 lbs

Related Documents

Similar Products

Model Number Coupling Size Thread 1 Seal Material A Price Action
5600 Series Industrial Interchange Quick Disconnect, Male Half, -12 Coupling, 3/4-14 Female Pipe

5602-12-12S 5600 Series Quick Disconnect

-12

3/4-14

Buna-N

2.28

5600 Series Industrial Interchange Quick Disconnect, Male Half, -04 Coupling, 1/4-18 Female Pipe

5602-4-4S 5600 Series Quick Disconnect

-04

1/4-18

Buna-N

1.24

5600 Series Industrial Interchange Quick Disconnect, Male Half, -06 Coupling, 3/8-18 Female Pipe

5602-6-6S 5600 Series Quick Disconnect

-06

3/8-18

Buna-N

1.4

5600 Series Industrial Interchange Quick Disconnect, Male Half, -10 Coupling, 1/2-14 Female Pipe

5602-8-10S 5600 Series Quick Disconnect

-10

1/2-14

Buna-N

1.89

5600 Series Industrial Interchange Quick Disconnect, Male Half, -10 Coupling, 3/4-14 Female Pipe

5602-12-10S 5600 Series Quick Disconnect

-10

3/4-14

Buna-N

2.03

5600 Series Industrial Interchange Quick Disconnect, Male Half, -16 Coupling, 1-11-1/2 Female Pipe

5602-16-16S 5600 Series Quick Disconnect

-16

1-11-1/2

Buna-N

2.77

5600 Series Industrial Interchange Quick Disconnect, Male Half, -04 Coupling, 1/8-27 Female Pipe

5602-2-4S 5600 Series Quick Disconnect

-04

1/8-27

Buna-N

1.17

Product Questions & Answers (5)

Question by: Wayne A on Jul 25, 2025, 5:39 PM
i’ve got a 3/4 pipe thread port, is this plug the one with 3/4-14 female NPT on it?
Answer by: Customer Support on Jul 26, 2025, 6:19 PM
This male half uses a 3/4-14 female NPT thread on the pipe end, and it is a -12 coupling size. It is the male plug style with a push to connect interface on the coupling side.
Question by: Rick F on Jun 3, 2025, 3:54 PM
fitting this up to a 3/4 pipe thread port on a dump trailer hitch block, the female NPT end goes into the port, right? just want to make sure i got the connection direction straight before i start wrenching
Answer by: Customer Support on Jun 5, 2025, 12:09 PM
Correct setup. The 3/4-14 NPT end threads into your port, and the male push-to-connect half is what mates with the female coupler body on the other side of the line. The NPT connection is female on this fitting, so it receives a male pipe thread coming out of your block or valve. Standard right-hand thread, wrench tight with appropriate thread sealant applied by the installer.
Question by: Phil A on Jul 14, 2025, 10:55 AM
Will this fitting hold up for hooking up to a hydraulic log splitter?
Answer by: Customer Support on Jul 15, 2025, 7:52 PM
Designed for hydraulic fluid transfer applications, this coupling is suitable for demanding uses. It's made with zinc-plated steel and has a streamlined valving to minimize pressure drop, making it appropriate for hydraulic log splitters as long as they operate within the specified temperature and pressure ranges.
Question by: Brett P on Feb 24, 2026, 5:42 PM
got a dump truck that needs a new quick disconnect on the hydraulic line, this a male half or female, and what thread size am I working with on the pipe end?
Answer by: Customer Support on Feb 26, 2026, 6:40 AM
Male half on the coupling side, and the pipe end runs a 3/4-14 female NPT thread. So you'd be threading a male NPT fitting into it. The coupling size is -12, which lines up with a 3/4-inch hydraulic line. Dump vehicles are actually one of the listed applications for this fitting, so it should suit that kind of setup well.
Question by: Floyd P on May 4, 2025, 7:08 AM
got a 3/4-14 female pipe port on my hose, is this the right half to screw in and still quick-connect on the other end?
Answer by: Customer Support on May 5, 2025, 1:31 PM
It has a 3/4-14 female NPT threaded end on one side and a male push-to-connect quick disconnect end on the other. It is the male half (plug) in the 5600 Series Industrial Interchange style, size -12.
