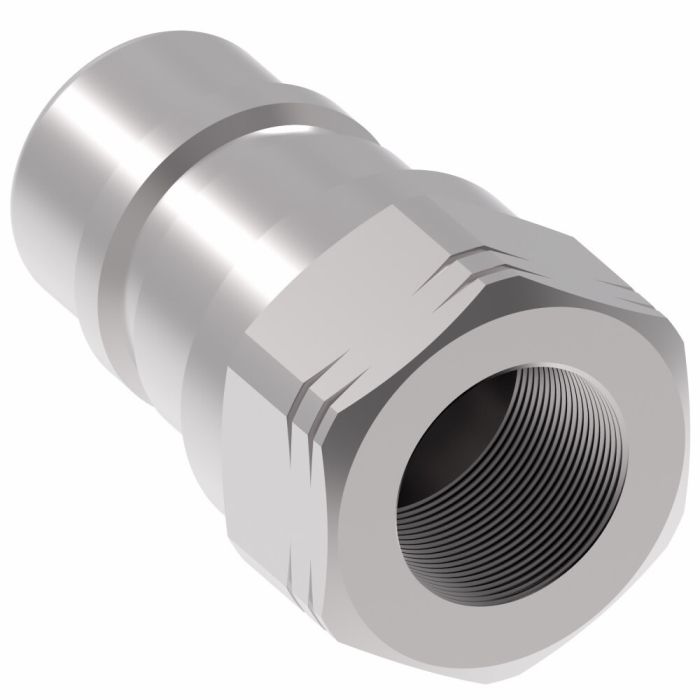

5600 Series Industrial Interchange Quick Disconnect, Male Half, -10 Coupling, 1/2-14 Female Pipe

Ask A Question

Description & Features

The Eaton 5600 Series Quick Disconnects, crafted by Danfoss Power Solutions, excel in providing reliable hydraulic fluid transfer solutions for heavy-duty applications such as agricultural equipment, construction machinery, and in-plant manufacturing. This push-to-connect coupling features a male half with a 1/2-14 female NPT thread, facilitating seamless integration into hydraulic systems.
The self-sealing poppet valve guarantees effective performance across varied pressure ranges, while the PUSH-PULLtrade; ball latch design ensures rapid and secure connections and disconnections. Built to conform dimensionally to ISO standard 7241/1 Series A, it provides stringent quality and compatibility assurance.
Manufactured from zinc-plated steel with durable Buna-N seals, this coupling minimizes fluid loss to 2.80 cubic centimeters and withstands temperatures as low as -40 degrees Celsius, ensuring robust performance in demanding conditions. With a rated flow of 12, the streamlined valving design reduces pressure drops efficiently.
MPN: EAR99
Supplier Part Number: 5602-8-10S

Specifications

Brand
Danfoss
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
FNPT, Male Quick-Disconnect
Connection Type 1
Male Quick Disconnect
Connection Type 2
Female NPT
Dimensions
2.02 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Coupling
Hex Size
1.06 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
4000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
5600 Series
Thread Size
1/2-14
Valve Type
2-Way

Similar Products

Model Number Coupling Size Thread Size Seal Material A Price Action
5600 Series Industrial Interchange Quick Disconnect, Male Half, -12 Coupling, 3/4-14 Female Pipe

5602-12-12S 5600 Series Quick Disconnect

-12

3/4-14

Buna-N

2.28

5600 Series Industrial Interchange Quick Disconnect, Male Half, -04 Coupling, 1/4-18 Female Pipe

5602-4-4S 5600 Series Quick Disconnect

-04

1/4-18

Buna-N

1.24

5600 Series Industrial Interchange Quick Disconnect, Male Half, -06 Coupling, 3/8-18 Female Pipe

5602-6-6S 5600 Series Quick Disconnect

-06

3/8-18

Buna-N

1.4

5600 Series Industrial Interchange Quick Disconnect, Male Half, -10 Coupling, 3/4-14 Female Pipe

5602-12-10S 5600 Series Quick Disconnect

-10

3/4-14

Buna-N

2.03

5600 Series Industrial Interchange Quick Disconnect, Male Half, -16 Coupling, 1-11-1/2 Female Pipe

5602-16-16S 5600 Series Quick Disconnect

-16

1-11-1/2

Buna-N

2.77

5600 Series Industrial Interchange Quick Disconnect, Male Half, -04 Coupling, 1/8-27 Female Pipe

5602-2-4S 5600 Series Quick Disconnect

-04

1/8-27

Buna-N

1.17

Product Questions & Answers (2)

Question by: Daryl W on Dec 4, 2025, 4:00 PM
What kind of equipment is this quick disconnect typically used on? I'm thinking about using it on my tractor.
Answer by: Customer Support on Dec 5, 2025, 6:25 PM
Application-wise, this type of quick disconnect sees action on agricultural equipment, construction equipment, and even in-plant manufacturing. It's also found on dump trucks, snow plows, and maintenance vehicles. So, it could be a good fit for your tractor, depending on what you're hooking up.
Question by: Carl M on Feb 16, 2026, 4:21 PM
Got a spot on my dump truck where I need to swap out a worn quick connect, thread's 1/2-14 NPT female. This the right part to drop in there?
Answer by: Customer Support on Feb 17, 2026, 5:04 PM
For a 1/2-14 female NPT connection, yeah, this one lines right up. The male half on this coupling carries a 1/2-14 NPT female thread on the pipe end, so it'll mate with a standard male NPT fitting on your line. It's rated for hydraulic fluid transfer and explicitly listed for dump vehicles, so that application fits squarely in its wheelhouse. Just confirm your existing socket half is compatible with the ISO 7241/1 Series A dimensional standard, since that's what this coupling conforms to.
