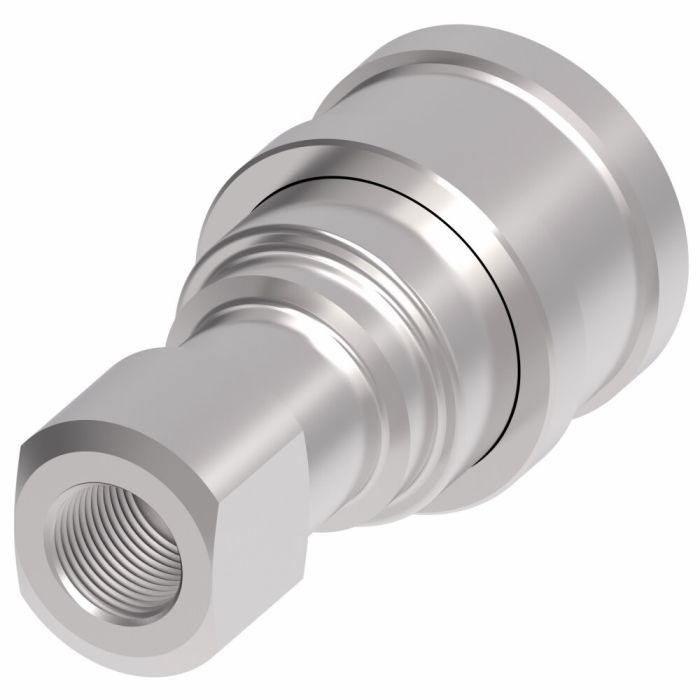

5600 Series Industrial Interchange Quick Disconnect, Female Half, -10 Coupling, 7/8-14 Female SAE O-Ring Boss (Straight Thread O-Ring)

Ask A Question

Description & Features

Supplier Part Number: 5608-10-10S This high-performance hydraulic quick disconnect coupling from Danfoss is engineered for fluid transfer in demanding environments. With a 7/8-14 female SAE O-ring boss and straight thread O-ring it ensures reliable connections.

The Eaton 5600 Series Quick Disconnects feature a PUSH-PULLtrade; ball latch design enabling quick and efficient connection and disconnection of fluid lines. Designed with a self-sealing poppet valve it provides excellent sealing under both high and low-pressure conditions.

Constructed from zinc-plated steel with zinc poppet guides this coupling ensures durability. It complies with ISO standard 7241/1 Series A dimensions and offers streamlined valving to reduce pressure drops.

Standard seal materials include Buna-N EPR and Vitonreg; for versatile fluid compatibility. This coupling is optimal for hydraulic fluid transfer in agricultural construction in-plant manufacturing and maintenance vehicles like dump and snow plows.

With a coupling size of -10 and a rated flow rate of 12 it supports efficient operation while minimizing fluid loss to 1.30 cubic centimeters and air inclusion to 2.80 cubic centimeters. The female-to-female coupling design with a push-to-connect and SAE ORB end type ensures a secure fit.

MPN: 5608-10-10S

Specifications

A
2.81
Air Inclusion Max
2.80 Cubic_centimeter
Application
Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles
B
1.52
Coupling Size
-10
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.88
End Size 2
0.88
End Type 1
Push to Connect
End Type 2
SAE ORB
Fluid Loss
1.30 Cubic_centimeter
Minimum Working Temperature
-40
Rated Flow
12
Rated Flow
12
Seal Material
Buna-N
Seal Part if Included
22550-211|21016-10S|21017-10
Supplier Part Number
5608-10-10S
Thread 1
7/8-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1EN49, Alternate Part Number MI-00298121, Alternate Part Number MINO-00015F46602, Alternate Part Number MINO-00925X11496
Product Weight
1.08 lbs

Related Documents

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Action
5600 Series Industrial Interchange Quick Disconnect, Female Half, -10 Coupling, 7/8-14 Female SAE O-Ring Boss (Straight Thread O-Ring)

5608-10-10S 5600 Series Quick Disconnect

-10

7/8-14

Buna-N

2.81

1.52

Product Questions & Answers (1)

Question by: Tammy P on Jun 13, 2025, 4:30 PM
Got a 7/8-14 ORB port on a hydraulic manifold for a piece of construction equipment. This the right fitting to thread straight into it?
Answer by: Customer Support on Jun 15, 2025, 7:25 AM
For a 7/8-14 female SAE O-Ring Boss port, yes, this is the correct match. The coupling threads directly into that port using the straight thread O-ring connection, which gives you a reliable leak-free seal without pipe thread sealant. The push-to-connect end is the female half, so you'd be mating it to the corresponding male plug when connecting your fluid line.
