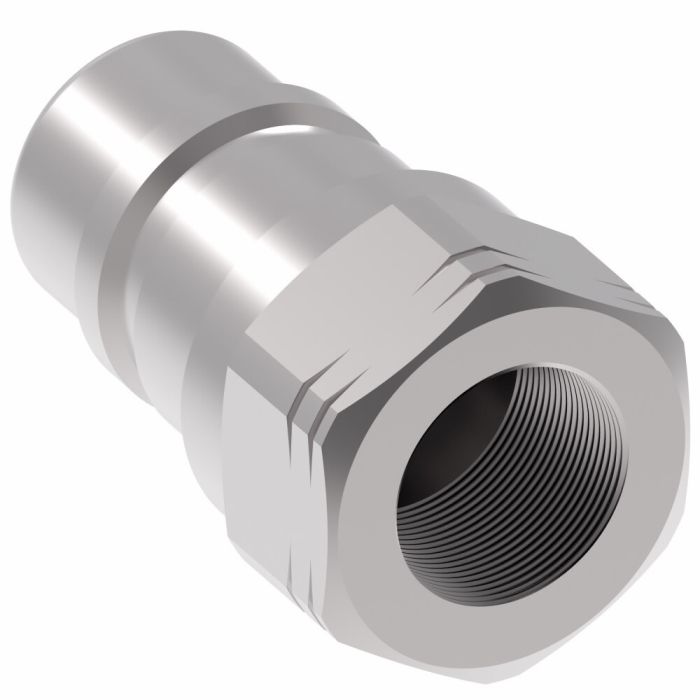

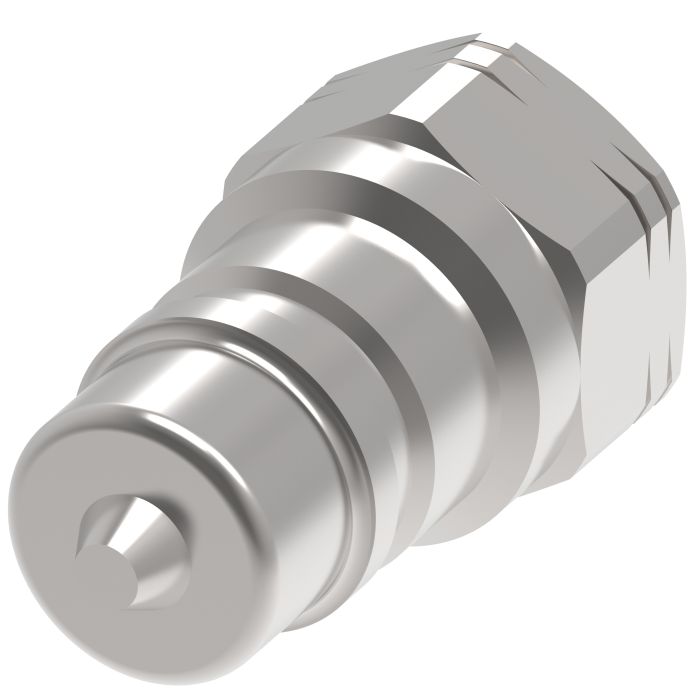

5600 Series Industrial Interchange Quick Disconnect, Male Half, -10 Coupling, 7/8-14 Female SAE O-Ring Boss (Straight Thread O-Ring)

Ask A Question

Description & Features

The 5600 Series Industrial Interchange Quick Disconnect Male Half -10 Coupling 7/8-14 Female SAE O-Ring Boss (Straight Thread O-Ring) is engineered by Danfoss Power Solutions for diverse hydraulic fluid transfer applications. Designed for robustness these quick disconnect couplings are applicable in agricultural construction and in-plant manufacturing settings. The PUSH-PULLtrade; ball latch design facilitates seamless coupling and decoupling while the self-sealing poppet valve ensures reliable sealing under varying pressures.

The 5600 Series conforms to ISO standard 7241/1 Series A ensuring compatibility and easy integration. The streamlined valving system minimizes pressure drop making it efficient for high flow requirements.

Constructed from zinc-plated steel with Buna-N seals these couplings are durable and resistant to wear. They operate efficiently in temperatures as low as -40 degrees. The inclusion of 2-way valves adds to the versatility of these couplings.

Applications for these couplings span across dump snow plow and maintenance vehicles due to their reliability and high performance. Rated for 12 units of flow and with dimensions of 7/8-14 for both ends these components maintain a low fluid loss of 2.80 cubic centimeters.

Supplier Part Number: 5610-10-10S

Specifications

A
2.08
Air Inclusion Max
2.80 Cubic_centimeter
Application
Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles
Coupling Size
-10
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.88
End Size 2
0.88
End Type 1
Push to Connect
End Type 2
SAE ORB
Fluid Loss
2.80 Cubic_centimeter
Minimum Working Temperature
-40
Rated Flow
12
Rated Flow
12
Seal Material
Buna-N
Seal Part if Included
21016-10S
Supplier Part Number
5610-10-10S
Thread 1
7/8-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1EN50, Alternate Part Number MI-00298128, Alternate Part Number MINO-00015F46608, Alternate Part Number MINO-00925X11503
Product Weight
0.22 lbs

Related Documents

Similar Products

Model Number Coupling Size Thread 1 Seal Material A Price Action
5600 Series Industrial Interchange Quick Disconnect, Male Half, -10 Coupling, 7/8-14 Female SAE O-Ring Boss (Straight Thread O-Ring)

5610-10-10S 5600 Series Quick Disconnect

-10

7/8-14

Buna-N

2.08

Product Questions & Answers (1)

Question by: Jimmy S on Jul 16, 2025, 2:38 PM
runs on a dump truck that sees some pretty rough winters, just wanna make sure this fitting can handle the cold without cracking or seizing up on me
Answer by: Customer Support on Jul 18, 2025, 11:06 AM
Cold weather operation is built into this coupling. It's rated down to -40 degrees, so freezing temps common to winter dump truck and snowplow setups won't push it past its limits. The zinc-plated steel body holds up to the wear and the Buna-N seals stay functional at those low temperatures. It's a fit for exactly that kind of application.
