SAME DAY SHIPPING
— Order by 2pm EST.

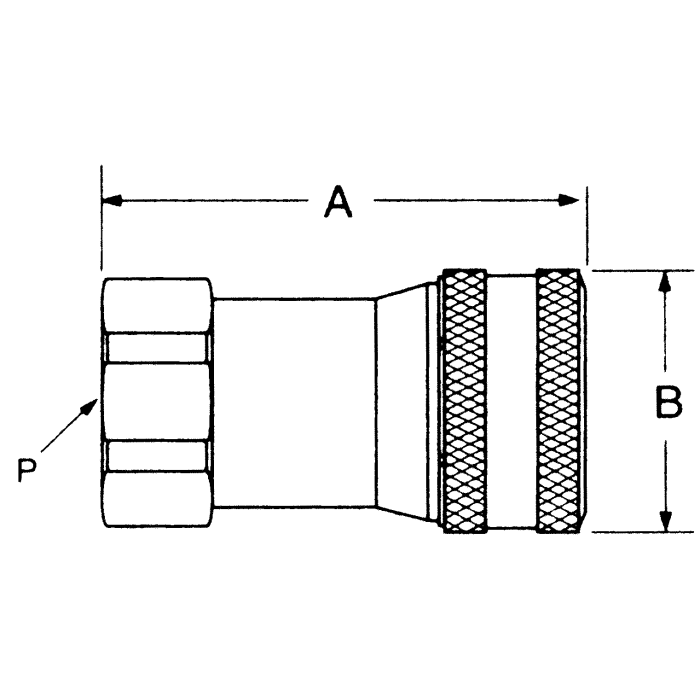

5600 Series Industrial Interchange Quick Disconnects, Female Half, Coupling, Female NPT
Description & Features
Products
| Model Number | Coupling Size | Thread 1 | Seal Material | A | B | Price | Action |
|---|---|---|---|---|---|---|---|
5601-4-4S 5600 Series Quick Disconnect |
-04 |
1/4-18 |
Buna-N |
1.81 |
1.08 |
|
|
5601-6-6S 5600 Series Quick Disconnect |
-06 |
3/8-18 |
Buna-N |
2.09 |
1.27 |
|
|
5601-8-10S 5600 Series Quick Disconnect |
-10 |
1/2-14 |
Buna-N |
2.76 |
1.52 |
|
|
5601-12-10S 5600 Series Quick Disconnect |
-10 |
3/4-14 |
Buna-N |
2.91 |
1.52 |
|
|
5601-12-12S 5600 Series Quick Disconnect |
-12 |
3/4-14 |
Buna-N |
3.25 |
1.84 |
|
|
5601-16-16S 5600 Series Quick Disconnect |
-16 |
1-11-1/2 |
Buna-N |
4.09 |
2.15 |
|
|
5601-2-4S 5600 Series Quick Disconnect |
-04 |
1/8-27 |
Buna-N |
1.81 |
1.08 |
|
Product Questions & Answers (1)
Question by: Judy M on Oct 23, 2025, 11:48 AM
What size thread does this coupling have? Just wanna make sure it'll fit right.
Answer by: Customer Support on Oct 25, 2025, 8:17 AM
It comes with a 3/4-14 female NPT thread, so double-check that matches your setup.
