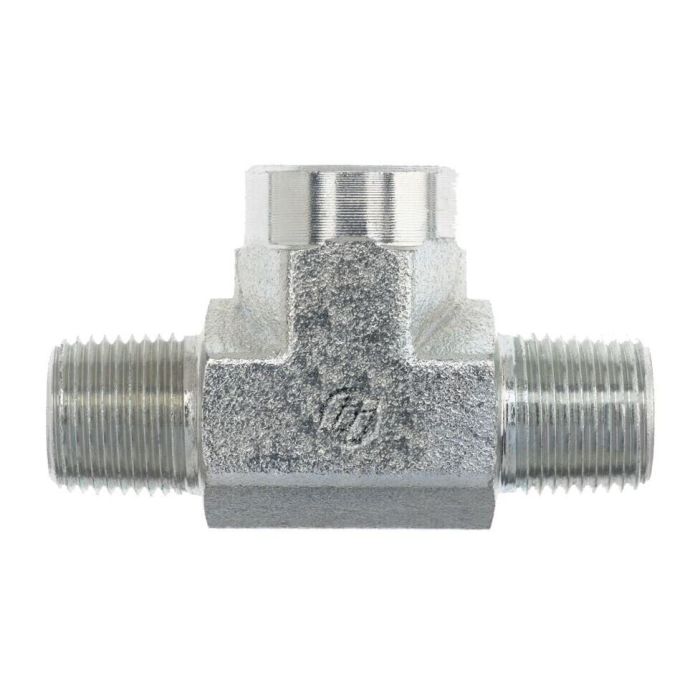

main product photo

04MP-04MP-04FP TEE

Ask A Question

Description & Features

The 04MP-04MP-04FP Branch Tee Forged is meticulously designed by Brennan Industries Inc. This product features precision-engineered threads adhering to SAE J476 standards with a thread size of 1/4-18 for both the male and female NPTF connections. The centerline and overall lengths are optimized to ensure compatibility and performance in industrial systems.

Manufactured from high-quality steel forging this tee ensures durability and reliability under demanding conditions. It has an overall length of 0.880 mm and equal centerline lengths of 1.090 mm for balanced connectivity.

The 04MP-04MP-04FP Branch Tee Forged by Brennan Industries Inc. is ideal for applications requiring robust and reliable connections between components.

MPN: 5601-04-04-04-FG

Supplier Part Number: 5601-04-04-04-FG

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Male SAE 30 deg NPTF
Connection Type 3
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
2.18 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
3/4 in
l Dimensions
0.88 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
5601-FG Series
Thread 2 Drill Dimensions
0.281 in
Thread 3 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.281 in
Thread Size
1/4-18

Product Questions & Answers (2)

Question by: Steve B on Aug 17, 2025, 12:30 PM
All three ports on this tee the same size, or is the branch port a different size than the runs?
Answer by: Customer Support on Aug 19, 2025, 6:48 AM
All three connections are 1/4-18 NPTF, so the branch and both run ports are identical. That makes it a true equal tee, which simplifies things if you're working with a single line size throughout your system.
Question by: Hank J on Jun 25, 2025, 6:02 PM
got a tee here with two 1/4 male pipe ends already, is this the one that has the other port female?
Answer by: Customer Support on Jun 27, 2025, 6:53 AM
For this 5601-FG branch tee, two ports are MALE NPTF and the third port is FEMALE NPTF, all in 1/4-18 thread size per SAE J476.
