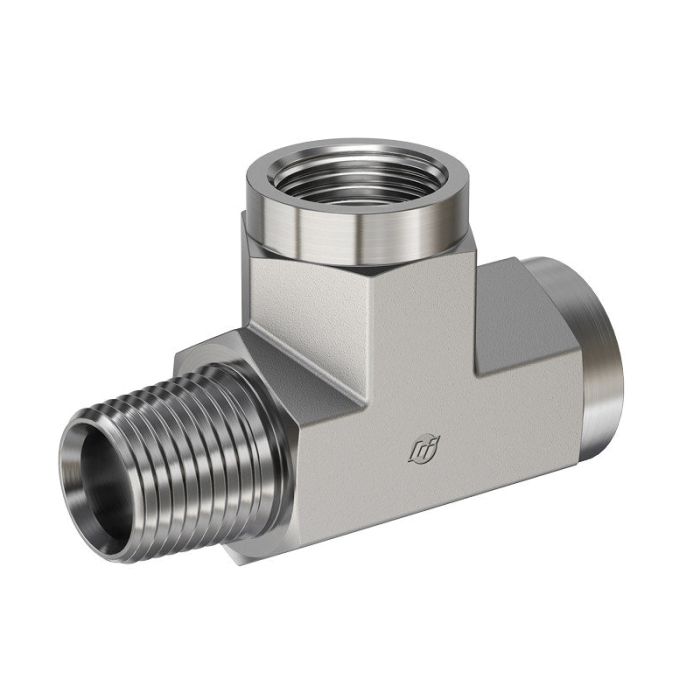

main product photo

02MP-02FP-02FP STREET TEE

Ask A Question

Description & Features

The Brennan Industries Inc 02MP-02FP-02FP Street Tee Forged is engineered with precision for industrial applications requiring robust performance. This forged steel tee is designed to withstand a maximum dynamic pressure of 6 000 PSI ensuring reliable operation in demanding environments.

With male and female NPTF threads conforming to SAE J476 specifications this street tee offers a secure and tight fit. The centerline lengths are 0.780 mm and 0.660 mm respectively contributing to its compact design. The overall length is 0.660 mm making it suitable for space-constrained installations.

Notably the raw material type is steel forging providing enhanced durability and resistance to wear and corrosion. Additionally the cubic inch space is 0.762 accommodating various industrial setups efficiently.

Supplier Part Number: 5602-02-02-02-FG

Specifications

Brand
BRENNAN
Connection Size 1
1/8 in
Connection Size 2
1/8 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Connection Type 3
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
0.762 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.44 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
0.563 in
l Dimensions
0.66 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
5602-FG Series
Thread 2 Drill Dimensions
0.188 in
Thread 3 Drill Dimensions
0.188 in
Thread B1 Drill Dimensions
0.188 in
Thread Size
1/8-27

Product Questions & Answers (3)

Question by: Brenda C on Apr 30, 2025, 4:41 PM
Will this tee handle 6000 PSI without any trouble?
Answer by: Customer Support on May 2, 2025, 2:40 PM
It's designed to handle a maximum dynamic pressure of 6000 PSI, so you should be good to go.
Question by: Keith P on Mar 21, 2026, 9:30 PM
Max pressure on this thing is 6,000 PSI, right? Just want to make sure it'll hold up on our hydraulic line before I order a bunch of em.
Answer by: Customer Support on Mar 23, 2026, 2:41 PM
6,000 PSI is the rated maximum dynamic pressure on this fitting, so it's built to handle serious line pressure without issue. All three ports are 1/8-27 NPTF threads conforming to SAE J476, which gives you a dry-seal connection that holds tight under pressure. For a standard hydraulic line running at or below that threshold, this tee should hold up without any trouble.
Question by: Marvin M on Feb 23, 2026, 10:44 AM
got a tight spot on a manifold, what threads are on this street tee?
Answer by: Customer Support on Feb 24, 2026, 3:14 PM
It uses NPTF threads per SAE J476 with a 1/8-27 size. The configuration is one male NPTF end and two female NPTF ends.
