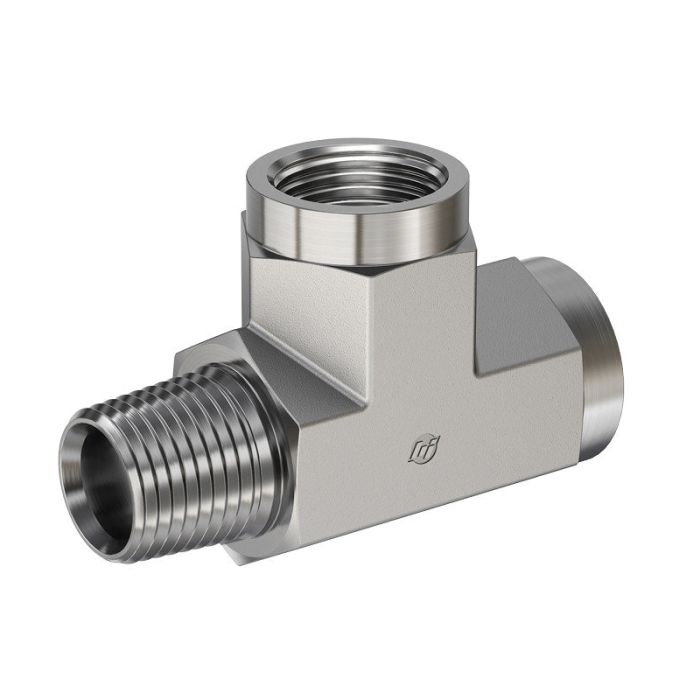

04MP-04FP-04FP STREET TEE

Ask A Question

Description & Features

The 04MP-04FP-04FP Street Tee Forged by Brennan Industries Inc is designed for high-performance applications requiring reliable connections. Manufactured from steel forging it offers maximum dynamic pressure of up to 6 000 psi ensuring durability and strength in demanding environments.

With centerline lengths of 1.090 mm and 0.880 mm this street tee is precision engineered for optimal fit and performance. Featuring a total cubic inch space of 1.854 it is suitable for compact installations where space efficiency is critical.

The product adheres to SAE J476 specifications with threading sizes of 1/4-18 for male and female NPTF connections. The drill diameter is consistently 0.281 mm providing uniformity and precise alignment during installation.

Designed to meet industrial standards this component ensures secure and leak-proof connections. The overall length is 0.880 mm making it ideal for applications where precise measurements are crucial.

MPN: 5602-04-04-04-FG

Supplier Part Number: 5602-04-04-04-FG

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Connection Type 3
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
1.854 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.97 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
3/4 in
l Dimensions
0.88 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
5602-FG Series
Thread 2 Drill Dimensions
0.281 in
Thread 3 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.281 in
Thread Size
1/4-18

Product Questions & Answers (1)

Question by: Bobby K on Dec 24, 2025, 3:43 PM
what's the max pressure rating on this street tee, and is it good enough for standard hydraulic line work?
Answer by: Customer Support on Dec 25, 2025, 8:41 PM
At 6,000 psi maximum dynamic pressure, it holds up well for most hydraulic system work. That rating comes from the forged steel construction, which gives it solid durability under sustained load. The 1/4-18 NPTF threads on all three ports are built to SAE J476 spec, so you're getting a leak-resistant connection across the board.
