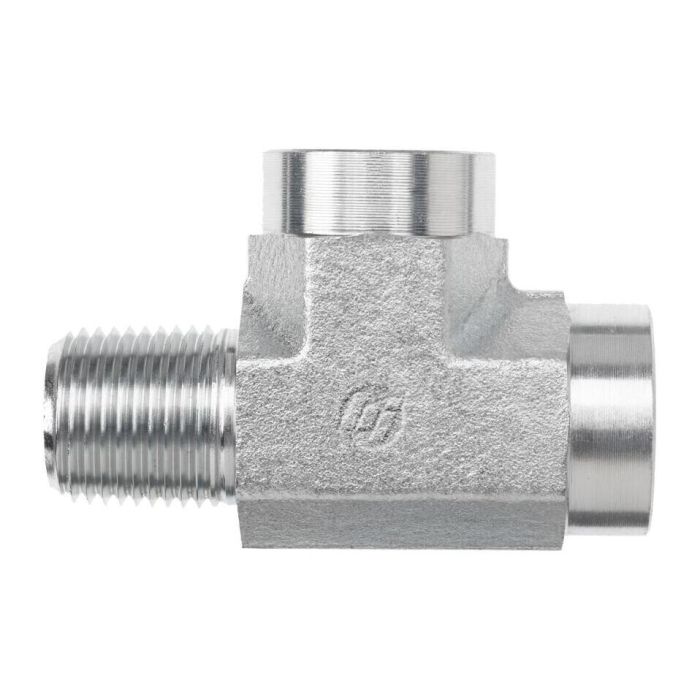

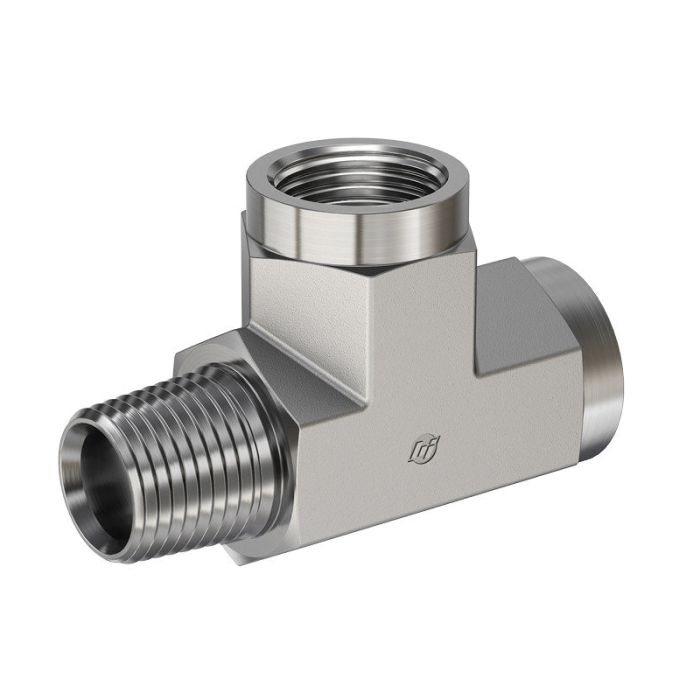

main product photo

04MP-04FP-04FP STREET TEE STNLS

Ask A Question

Description & Features

The 04MP-04FP-04FP Street Tee Stnls by Brennan Industries Inc is engineered to handle demanding applications with a maximum dynamic pressure tolerance of 6 000 psi. With its durable straight stainless steel construction this tee ensures reliability in robust environments.

Designed to precise specifications it features three threads: 1/4-18 male NPTF and two 1/4-18 female NPTF all conforming to SAE J476 standards. The intricate thread design guarantees secure and leak-proof connections.

Its compact dimensions include a centerline length of 1.090 mm on one axis and 0.880 mm on the other with an overall length of 0.880 mm. The tee occupies a cubic inch space of 1.854 optimizing its fit in confined setups.

California Residents: PROP-65 WARNING

Series: 5602-FG

Supplier Part Number: 5602-04-04-04-SS

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Connection Type 3
Female SAE NPTF
Cubic Inch Space L x W x H Dimensions
1.854 cu-in
Dimension Standards
SAE J476, SAE J514
Dimensions
1.97 in L
Fitting Type
Tee
Hex Size
3/4 in
l Dimensions
0.88 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
5000 psi
Series
5602-FG Series
Thread 2 Drill Dimensions
0.281 in
Thread 3 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.281 in
Thread Size
1/4-18

Product Questions & Answers (2)

Question by: Floyd E on Sep 18, 2025, 5:21 PM
Max pressure rating on this thing? Got a line running around 5,500 psi and need to know if a quarter-inch stainless tee can handle it before I go swapin stuff out.
Answer by: Customer Support on Sep 20, 2025, 7:32 AM
Rated for 6,000 psi dynamic pressure, so a 5,500 psi line falls within range on that front. All three ports are 1/4-18 NPTF, with one male end and two female ends, which is the street tee configuration that lets you thread it directly into a port without a separate nipple. The stainless steel construction holds up well where corrosion or fluid compatibility with carbon steel is a concern.
Question by: Vince F on Jan 12, 2026, 4:48 PM
got one port that’s male and two that are female, all 1/4-18 nptf, right?
Answer by: Customer Support on Jan 14, 2026, 8:21 AM
Threading is set up as one 1/4-18 male NPTF and two 1/4-18 female NPTF ports, all built to SAE J476.
