main product photo

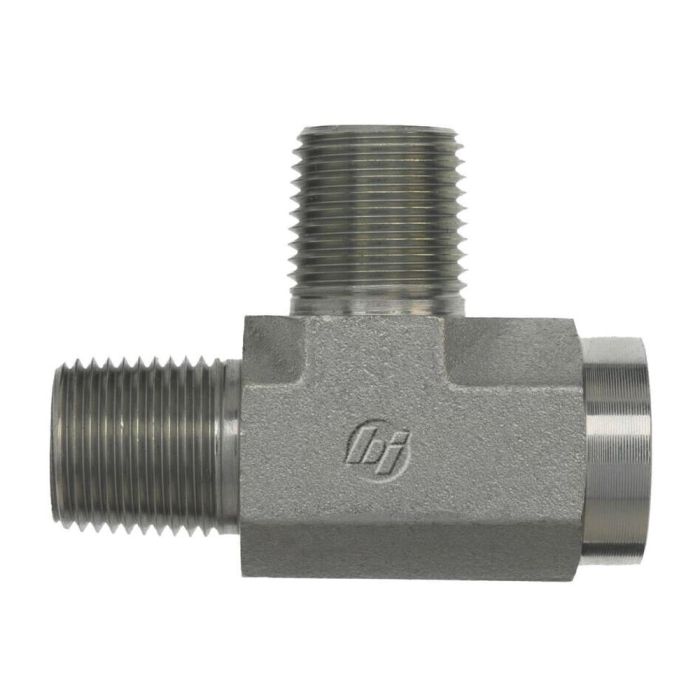

08MP-08FP-08MP TEE

Ask A Question

Description & Features

This high-quality 08MP-08FP-08MP Tee Forged from Brennan Industries Inc is engineered for demanding industrial applications. The tee fitting features a robust steel forging construction ensuring durability and reliability in challenging environments. Its precision-engineered threads conform to SAE J476 specifications with both male and female NPTF types providing secure and leak-free connections.

The overall length and centerline dimensions measured in millimeters provide critical fitment data for accurate installations. These specifications include a centerline length of 1.470 mm and 1.230 mm alongside an overall length of 1.470 mm.

With thread sizes of 1/2-14 for all three connections this tee is versatile and capable of integrating seamlessly into various systems.

Supplier Part Number: 5603-08-08-08-FG

MPN: 5603-08-08-08-FG

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Size 3
1/2 in
Connection Type
FNPT, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
Female SAE NPTF
Connection Type 3
Male SAE 30 deg NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
5.2 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1.06 in
l Dimensions
1.47 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
5603-FG Series
Thread 2 Drill Dimensions
0.531 in
Thread 3 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14

Product Questions & Answers (3)

Question by: Ricky T on Oct 8, 2025, 4:07 PM
trying to swap out a tee i busted, are all three ports on this one 1/2-14 NPTF?
Answer by: Customer Support on Oct 10, 2025, 6:06 AM
All three connections are 1/2-14 NPTF on this tee. Two ends are male NPTF and the branch is female NPTF, with the threads built to SAE J476.
Question by: Darryl C on Jan 12, 2026, 12:31 PM
What kind of steel is this tee made of?
Answer by: Customer Support on Jan 14, 2026, 10:25 AM
This tee fitting is forged from a robust steel, making it durable for tough industrial jobs.
Question by: Carl C on Apr 14, 2025, 12:39 PM
all three ports on this tee are 1/2-14 threads, right? just want to make sure before I go wrenching on it
Answer by: Customer Support on Apr 15, 2025, 1:17 PM
Correct on all three. Both male ports and the female port are all 1/2-14 NPTF, so you won't have any mismatched thread sizes to deal with. The threads conform to SAE J476 spec across the board, which keeps connections tight and leak-resistant when properly installed.
