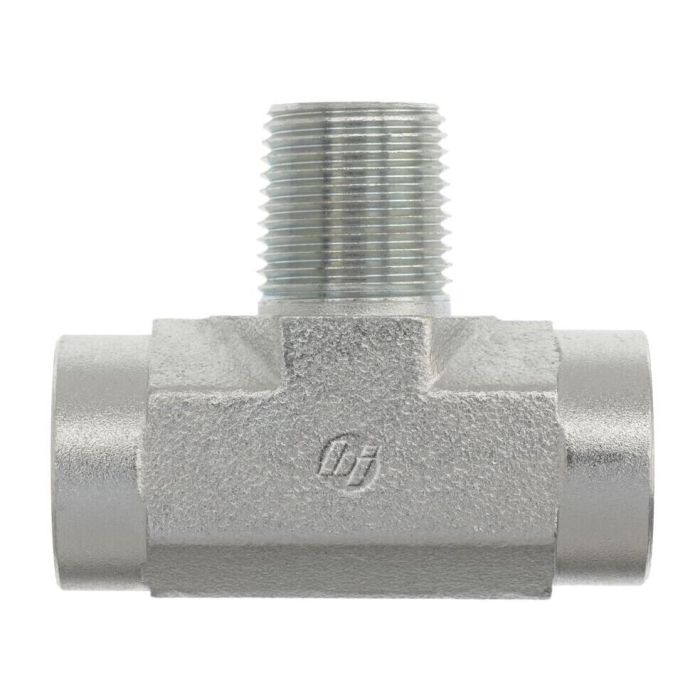

06FP-06FP-06MP BRANCH TEE

Description & Features

This branch tee features three ports, two with 3/8-18 Female NPTF threads and one with 3/8-18 Male NPTF threads, all manufactured according to SAE J476 specifications.

The 06FP-06FP-06MP BRANCH TEE is constructed from durable forged steel, offering robust performance in demanding hydraulic applications. Centerline length is 1.020 mm, with an overall length of 1.220 mm.

SKU: 5604-06-06-06-FG

Supplier Part Number (MPN): 5604-06-06-06-FG

Alternate Part Numbers: 5604-06-06-06, A2091-6-6S

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 5604-06-06-06-FG	Product Weight 0.00 lbs

Product Questions & Answers (2)

Question by: Lyle M on Dec 16, 2025, 9:42 AM

i need a tee with two female ports and one male, all 3/8-18 nptf. is that what this one is?

Answer by: Customer Support on Dec 17, 2025, 2:15 PM

For port layout, it has three 3/8-18 NPTF connections total, with two Female NPTF ports and one Male NPTF port, made to SAE J476.

Question by: Shane J on Aug 23, 2025, 3:32 PM

what's the thread setup on this tee? got two lines coming in and one going out, trying to figure out if the ports match up right

Answer by: Customer Support on Aug 25, 2025, 8:00 AM

Two of the ports are 3/8-18 Female NPTF and the third is 3/8-18 Male NPTF, all cut to SAE J476 spec. So you've got two female ports that accept male-threaded lines or fittings, and one male port that threads into a female-threaded component. All three are the same 3/8-18 size, which keeps things straightforward when you're sourcing mating fittings.
