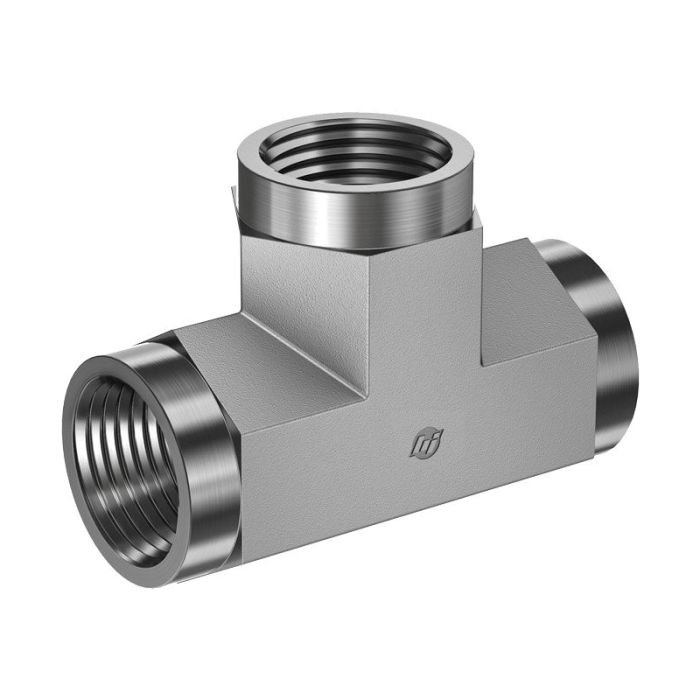

04FP-04FP-04FP TEE

Ask A Question

Description & Features

This 04FP-04FP-04FP Tee Forged by Brennan Industries Inc is designed for specialized industrial applications. Made from high-quality steel forging it ensures durability and reliability.

The tee features three Female NPTF threads all sized at 1/4-18 with specifications adhering to SAE J476 standards. Each thread is drilled to a precision of 0.281 mm providing a secure and efficient connection.

Both centerline lengths and the overall length of the tee are precisely measured at 0.880 mm ensuring a perfect fit in your industrial setups.

Supplier Part Number: 5605-04-04-04-FG

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPTF
Connection Type 3
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
1.76 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
3/4 in
l Dimensions
0.88 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
5605-FG Series
Thread 2 Drill Dimensions
0.281 in
Thread 3 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.281 in
Thread Size
1/4-18

Product Questions & Answers (3)

Question by: Jean E on Jan 1, 2026, 10:03 AM
Will this tee fitting hold up okay in an oily environment?
Answer by: Customer Support on Jan 2, 2026, 12:50 PM
This tee is forged from high-quality steel, so it's durable enough to handle typical hydraulic environments where oil exposure is common.
Question by: Marvin H on Jan 5, 2026, 1:30 PM
All three ports on this tee are 1/4-18 NPTF female threads, right? Just want to make sure before I go pulling lines apart on this machine.
Answer by: Customer Support on Jan 7, 2026, 6:48 AM
All three connections are identical, 1/4-18 Female NPTF threads across the board, and all three meet SAE J476 spec. Every port is drilled to 0.281 mm, so you're working with consistent sizing on all ends. No mixing or mismatching to worry about.
Question by: Rick F on Jun 11, 2025, 6:12 AM
trying to swap out a tee i got now, are all three ports on this one 1/4-18 female nptf?
Answer by: Customer Support on Jun 12, 2025, 3:26 PM
All three ends are Female NPTF threads, each sized 1/4-18, and they follow SAE J476.
