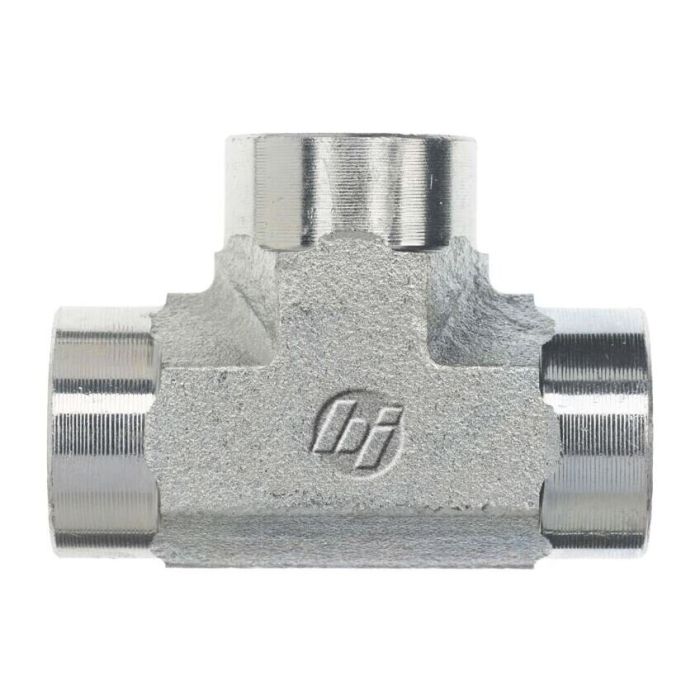

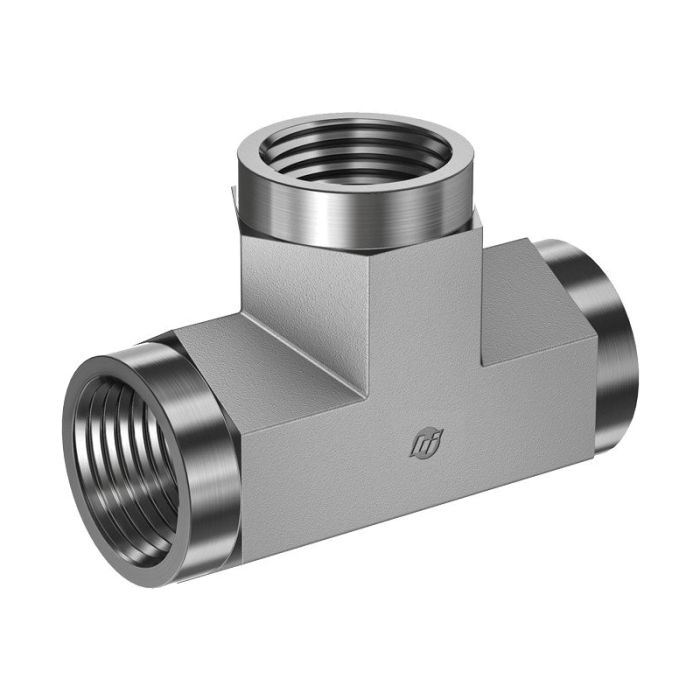

08FP-08FP-08FP TEE

Ask A Question

Description & Features

The Brennan Industries 08FP-08FP-08FP Tee Forged is expertly constructed using high-quality steel forging ensuring durability and longevity in industrial applications. This component is designed with three Female NPTF threads each measuring 1/2-14 complying with SAE J476 specifications.

Centerline lengths for all interfaces are uniformly set at 1.230 mm contributing to precise fitting and alignment in complex systems. The series 5605-FG guarantees that the part meets rigorous manufacturing standards for industries requiring reliable and robust fittings.

The overall length of 1.230 mm supports consistent integration into existing frameworks promoting seamless operational functionality.

Supplier Part Number: 5605-08-08-08-FG

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Size 3
1/2 in
Connection Type
FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPTF
Connection Type 3
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Dimensions
2.46 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1.06 in
l Dimensions
1.23 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
5605-FG Series
Thread 2 Drill Dimensions
0.531 in
Thread 3 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14

Product Questions & Answers (3)

Question by: Neil J on Aug 24, 2025, 2:18 PM
So this is a tee fitting, right? With three female NPTF threads? Just makin' sure I'm understanding that part.
Answer by: Customer Support on Aug 26, 2025, 1:37 PM
That's correct. This tee fitting is constructed with three female NPTF threads, all sized at 1/2-14 according to SAE J476 specifications.
Question by: Denise H on Jan 21, 2026, 12:03 PM
trying to replace a tee on my line, are all three ports on this one 1/2-14 female nptf?
Answer by: Customer Support on Jan 22, 2026, 5:51 PM
All three connections are Female NPTF threads in 1/2-14, built to the SAE J476 thread specification.
Question by: Phil H on Jan 31, 2026, 2:36 PM
all three ports on this tee are the same size, right? just want to make sure before I go wrenching on it
Answer by: Customer Support on Feb 2, 2026, 7:26 AM
all three are 1/2-14 Female NPTF threads, so you've got a uniform connection across every port. No reducers or adapters needed if your lines are already running 1/2-14. The threads meet SAE J476 spec on all three ends, and the drill size across each port is 0.531 mm, so everything's matched up consistent.
