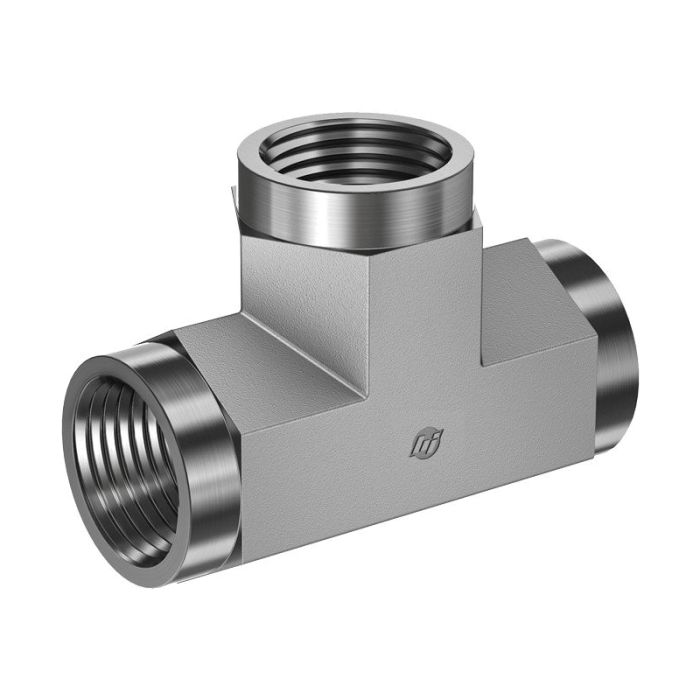

24FP-24FP-24FP TEE

Ask A Question

Description & Features

The 24FP-24FP-24FP TEE, also known as a branch tee, offers reliable connections for industrial hydraulic systems.

This tee fitting from Brennan Industries features a robust construction suitable for demanding applications.

SKU: 5605-24-24-24

Supplier Part Number (MPN): 5605-24-24-24-FG

Alternate Part Numbers: A2090-24-24S

Specifications

Brand BRENNAN	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type FNPT	Connection Type 1 Female SAE NPTF	Connection Type 2 Female SAE NPTF	Connection Type 3 Female SAE NPTF	Dimension Standards SAE J476, SAE J514	Dimensions 4.16 in L	Finish Trivalent Zinc-Plated	Fitting Type Tee	Material Steel	Material Construction AISI C1045 Steel	Maximum Operating Pressure 1500 psi	Series 5605-FG Series	Thread Size 1-1/2-11-1/2

Product Questions & Answers (1)

Question by: Johnny W on Jun 30, 2025, 9:22 PM

Will this tee fitting hold up okay in a hydraulic system running around 2000 PSI?

Answer by: Customer Support on Jul 2, 2025, 9:50 AM

This tee fitting, constructed by Brennan Industries, offers reliable connections suitable for demanding industrial hydraulic applications. So, it should be fine at that pressure.
