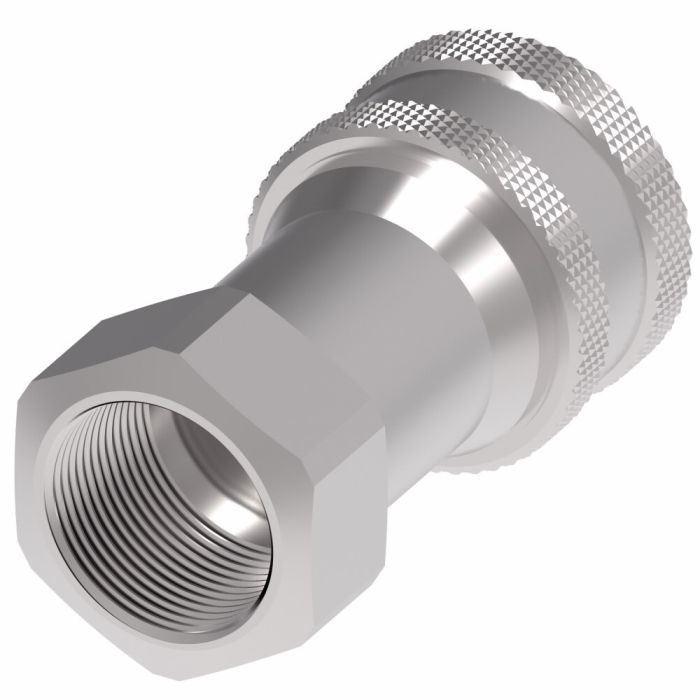

Designed for hydraulic fluid transfer across agricultural, construction, and in-plant manufacturing equipment, this female half quick disconnect coupling features a ball lock internal connection and a Push-to-Connect end type with a 9/16" SAE ORB port. No special tools are required for connection or disconnection, making it well-suited for maintenance vehicles, dump equipment, and snow plow applications.
The Danfoss / Eaton Couplings - Code Cp is built from carbon steel with Buna-N seals and carries an ISO 7241-1 Series A certification. Rated for a flow of 6 gallons per minute and a minimum working temperature of -40°F, it performs reliably in demanding field conditions. The 2-way valve configuration supports controlled fluid management in standard hydraulic circuits.
SKU: 5608-6-6S
Supplier Part Number (MPN): 5608-6-6S
Alternate Part Numbers: 12365755-4, MI-00298118, MINO-00015F46600
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part Number12365755-4, Alternate Part Number MI-00298118, Alternate Part Number MINO-00015F46600, Alternate Part Number MINO-00402X02865
Application
Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles
Certifications
ISO 7241-1 Series A
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 2
0.56
End Type 1
Push to Connect
End Type 2
SAE ORB
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
does this socket work with the hansen 5600 series bodies, or do i need a different series altogether?
Answer by: Customer Support on Dec 29, 2025, 10:48 AM
Ball lock internal connection and ISO 7241-1 Series A certification means it mates correctly with Hansen 5600 series couplings. The socket half uses a push-to-connect end on one side and a 9/16 SAE ORB port on the other, so as long as your body matches that series and your port fits a 9/16 ORB thread, you should be in good shape.
Question by: Glen S on Aug 24, 2025, 6:46 PM
What size is this Eaton coupling? I want to make sure it's the right fit.
Answer by: Customer Support on Aug 26, 2025, 6:32 AM
This Eaton/Danfoss coupling has a 9/16 port size and a 0.5625 end size 2, with female ends.
