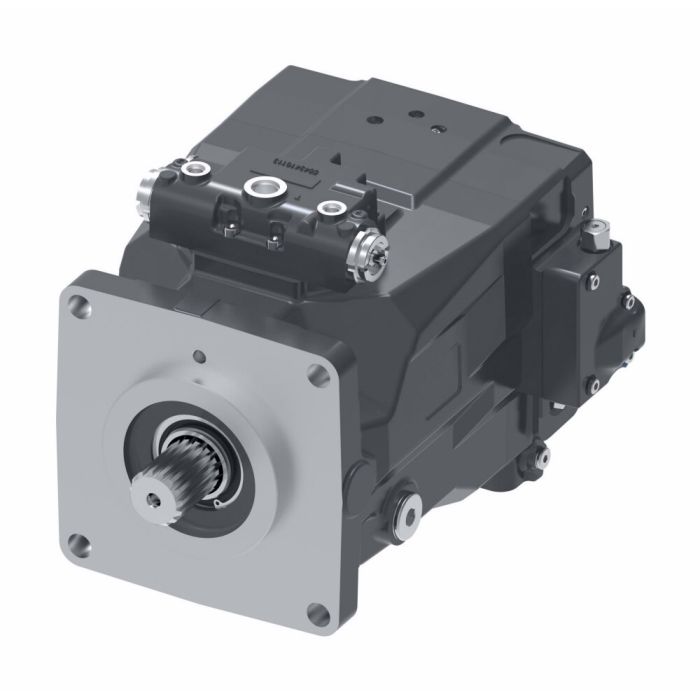

Designed for demanding mobile applications, the Danfoss / Eaton DuraForce HPV105 is a variable displacement closed circuit piston pump built to perform across construction, agriculture, truck and bus, oil and gas, and similar mobile environments. Its compact packaging makes it well-suited for installations where space is a constraint without sacrificing displacement range or pressure capability.
The HPV Series covers displacements from 55cc to 280cc, giving engineers flexibility across a wide range of drive configurations. Rated for operating pressures up to 420 bar, the pump is engineered to handle the high-demand cycles typical of mobile hydraulic systems. Variable displacement control allows output to be matched to load requirements, supporting efficient use of available power.
SKU: 560AW01873A
Supplier Part Number (MPN): 560AW01873A
|
Alternate Part Numbers
MINO-00900X30536
|
Application
Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applications
|
Brand
Danfoss Power Solutions II (Char-Lynn)
|
Brand
Char-Lynn
|
Pack Size
1.00
|
UOM
EA
|
Features
Compact packaging|Displacements: 55cc to 280cc (3.57 to 17.1 cu in)|Operating pressure: 420 bar (610 psi)
|
ICC
Mobile - CC Piston Pumps
|
Language
English
|
Product Width
13.07
|
Special Features
None
|
Sub Brand
DuraForce
|
Supplier Part Number
560AW01873A
|
Type
Variable Displacement
|
Product Weight
145.50 lbs
|
