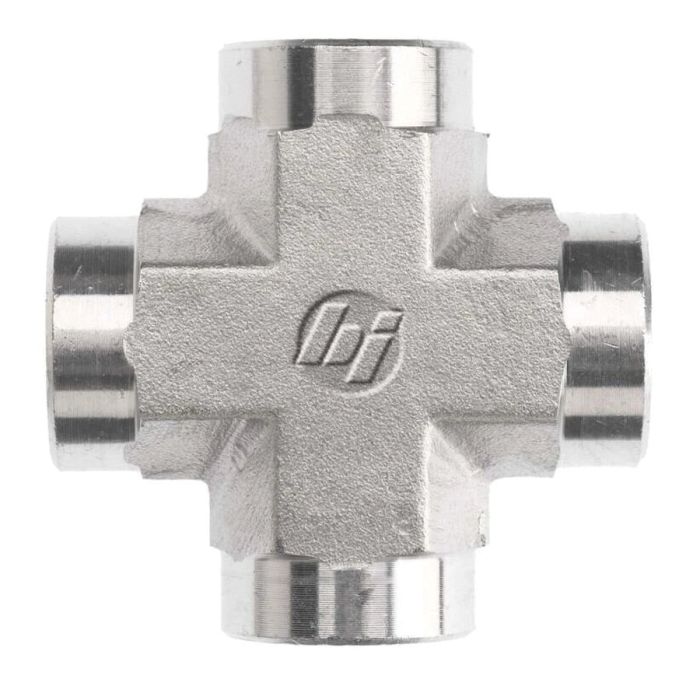

main product photo

02FP-02FP-02FP-02FP CROSS

Ask A Question

Description & Features

The 02FP-02FP-02FP-02FP Cross Forged from Brennan Industries Inc is an essential component designed to meet the stringent requirements of various industrial applications. Constructed from high-quality steel forging it ensures robust performance and long-lasting durability. The cross features a precise overall length of 1.320 mm and consistent centerline lengths of 0.660 mm for each outlet making it highly reliable in maintaining structural integrity. All four female NPTF threads are compliant with SAE J476 standards providing a secure and tight fit with a thread size of 1/8-27. With a drill diameter of 0.188 mm across all threads this cross forged part guarantees uniformity enhancing compatibility across different systems. Its series classification is 5652-FG indicating its specialized category within industrial fittings.

Supplier Part Number: 5652-02-02-02-02-FG

Specifications

Brand
BRENNAN
Connection Size 1
1/8 in
Connection Size 2
1/8 in
Connection Type
FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPTF
Connection Type 3
Female SAE NPTF
Connection Type 4
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
Cross
l2 Dimensions
1.32 in
l Dimensions
1.32 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
5652-FG Series
Thread 2 Drill Dimensions
0.188 in
Thread 3 Drill Dimensions
0.188 in
Thread 4 Drill Dimensions
0.188 in
Thread B1 Drill Dimensions
0.188 in
Thread Size
1/8-27

Product Questions & Answers (2)

Question by: Harvey A on Oct 23, 2025, 9:00 PM
trying to replace a cross fitting i pulled off an old manifold, are all four ports on this one the same thread?
Answer by: Customer Support on Oct 25, 2025, 3:12 PM
All four outlets are female NPTF threads, size 1/8-27, built to SAE J476, so it is a straight 4-way cross with matching ports.
Question by: Hugh A on Nov 11, 2025, 7:48 AM
What's the overall length of this cross fitting? Just need to make sure it'll fit in the space I've got.
Answer by: Customer Support on Nov 13, 2025, 8:57 AM
The overall length of this Brennan Industries cross fitting is 1.320 mm.
