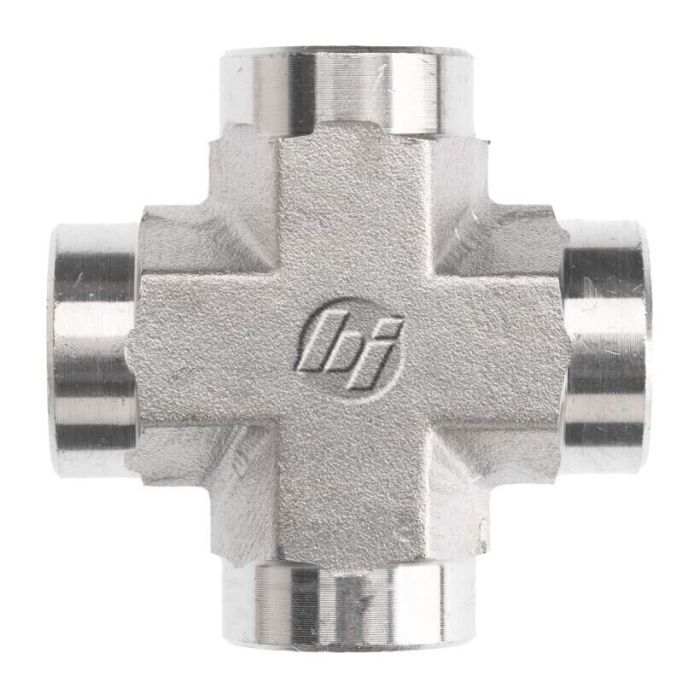

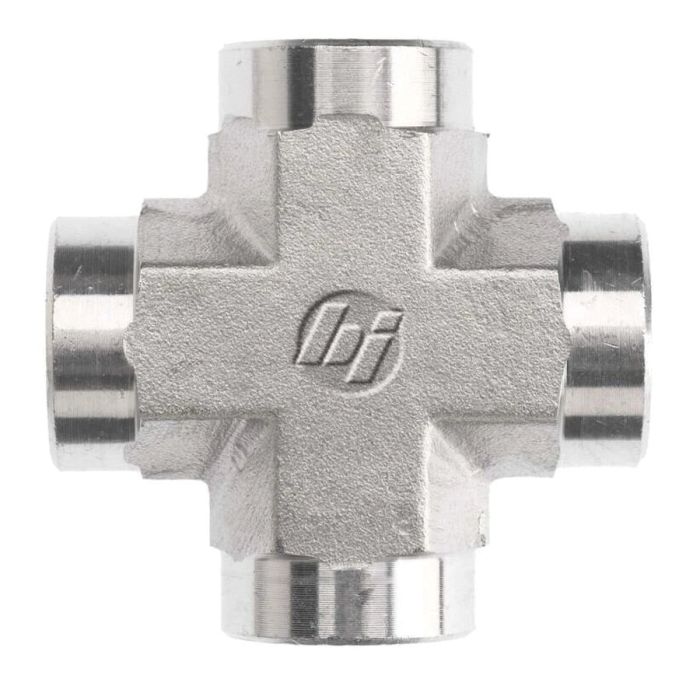

main product photo

04FP-04FP-04FP-04FP Cross Forged

Ask A Question

Description & Features

Engineered for robust hydraulic applications, the 04FP-04FP-04FP-04FP Cross Forged fitting is crafted from premium steel forging, ensuring durability and reliability in demanding environments. This cross fitting features four Female NPTF ports, each with a thread size of 1/4-18, conforming to SAE J476 specifications, making it ideal for secure and efficient fluid transfer.

The fitting boasts uniform centerline lengths of 0.880 mm for all ports, while the overall length is precisely measured at 1.760 mm. Such consistency in dimensions ensures seamless integration into existing hydraulic systems, maximizing operational efficiency. Suitable for various industrial applications, this fitting is a versatile component in fluid power systems.

SKU: 5652-04-04-04-04-FG

Supplier Part Number (MPN): 5652-04-04-04-04-FG

Alternate Part Numbers: 5652-4-4-4-4-FG, A2080-4-4S, C1EN51

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPTF
Connection Type 3
Female SAE NPTF
Connection Type 4
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
Cross
l2 Dimensions
1.76 in
l Dimensions
1.76 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
5652-FG Series
Thread 2 Drill Dimensions
0.281 in
Thread 3 Drill Dimensions
0.281 in
Thread 4 Drill Dimensions
0.281 in
Thread B1 Drill Dimensions
0.281 in
Thread Size
1/4-18

Product Questions & Answers (1)

Question by: Tommy P on Mar 19, 2026, 6:37 PM
What size are the threads on this cross fitting?
Answer by: Customer Support on Mar 21, 2026, 7:19 AM
This fitting features 1/4-18 threads on all four ports, conforming to SAE J476 specifications.
