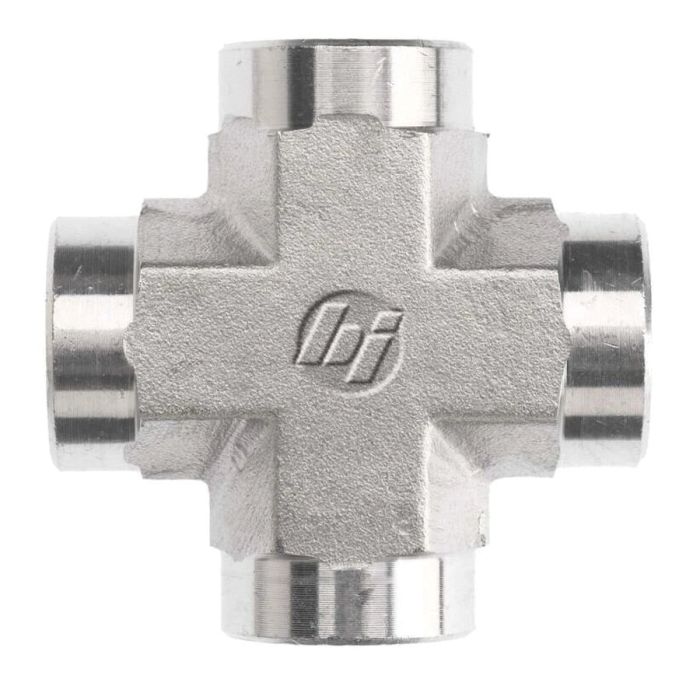

main product photo

08FP-08FP-08FP-08FP CROSS

Ask A Question

Description & Features

BRENNAN INDUSTRIES INC 5652-08-08-08-08-FG offers exceptional quality with the 08FP-08FP-08FP-08FP Cross Forged constructed from durable steel forging. This product features consistent 1.230 mm centerline lengths and 2.460 mm overall lengths ensuring precise measurements across all connections.

All threads adhere to SAE J476 specifications with female NPTF threads sized at 1/2-14 providing reliable compatibility and seamless integration in diverse industrial applications. Each thread drill measures 0.531 mm facilitating secure and robust connections.

The 5652-FG series emphasizes optimal performance and longevity making it suitable for demanding environments. The component's engineering integrates advanced specifications for enhanced reliability and endurance in complex systems.

MPN: 5652-08-08-08-08-FG

Supplier Part Number: 5652-08-08-08-08-FG

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Size 3
1/2 in
Connection Type
FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPTF
Connection Type 3
Female SAE NPTF
Connection Type 4
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
Cross
l2 Dimensions
2.46 in
l Dimensions
2.46 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
5652-FG Series
Thread 2 Drill Dimensions
0.531 in
Thread 3 Drill Dimensions
0.531 in
Thread 4 Drill Dimensions
0.531 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14

Product Questions & Answers (2)

Question by: Lyle M on Dec 27, 2025, 4:21 PM
trying to tie four lines together, are all four ports on this cross the same thread?
Answer by: Customer Support on Dec 29, 2025, 1:30 PM
All four connections are female NPTF threads, size 1/2-14, built to SAE J476, so each port matches the others.
Question by: Lee H on Oct 19, 2025, 8:03 PM
Reckon this'll hold up okay in a hydraulic system running at, say, a steady 2000 psi?
Answer by: Customer Support on Oct 21, 2025, 6:41 AM
This cross fitting is engineered for durability in demanding environments, with robust steel forging ensuring longevity in complex hydraulic systems.
