12FP-12FP-12FP-12FP CROSS

Description & Features

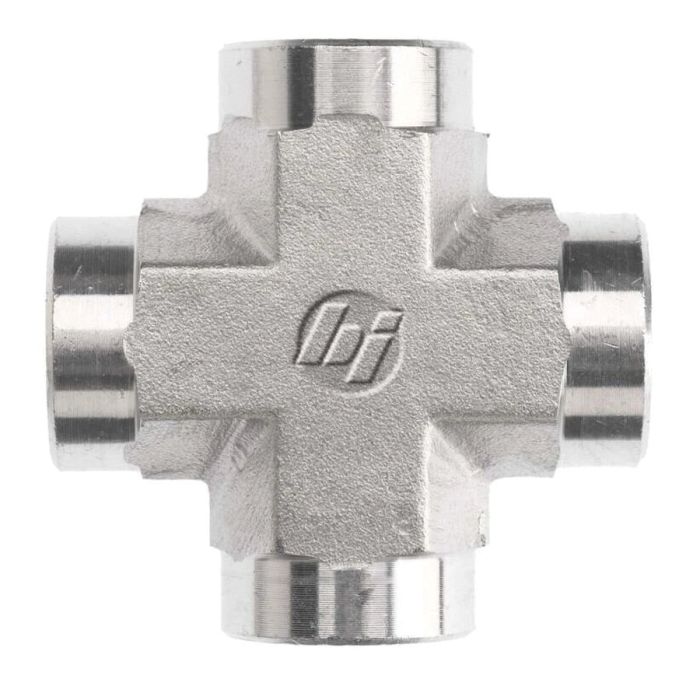

This forged steel cross fitting features four female NPTF ports, each with a 3/4-14 thread size conforming to SAE J476 specifications.

The 12FP-12FP-12FP-12FP CROSS is part of the 5652-FG series. The centerline length of each port is 1.360 mm, with an overall length of 2.720 mm.

SKU: 5652-12-12-12-12-FG

Supplier Part Number (MPN): 5652-12-12-12-12-FG

Alternate Part Numbers: 5652-12-12-12-12, A2080-12-12S

Brand BRENNAN	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Size 3 3/4 in	Connection Type FNPT	Connection Type 1 Female SAE NPTF	Connection Type 2 Female SAE NPTF	Connection Type 3 Female SAE NPTF	Connection Type 4 Female SAE NPTF	Dimension Standards SAE J476, SAE J514	Finish Trivalent Zinc-Plated	Fitting Type Cross	l2 Dimensions 2.72 in	l Dimensions 2.72 in	Material Steel	Material Construction AISI C1045 Steel	Maximum Operating Pressure 3000 psi	Series 5652-FG Series	Thread 2 Drill Dimensions 0.719 in	Thread 3 Drill Dimensions 0.719 in	Thread 4 Drill Dimensions 0.719 in	Thread B1 Drill Dimensions 0.719 in	Thread Size 3/4-14

Question by: Kent P on May 31, 2025, 3:46 PM

Is this cross fitting made of steel or some other metal?

Answer by: Customer Support on Jun 2, 2025, 6:31 AM

Forged steel is the raw material for this cross fitting, which should give you the strength you need.
