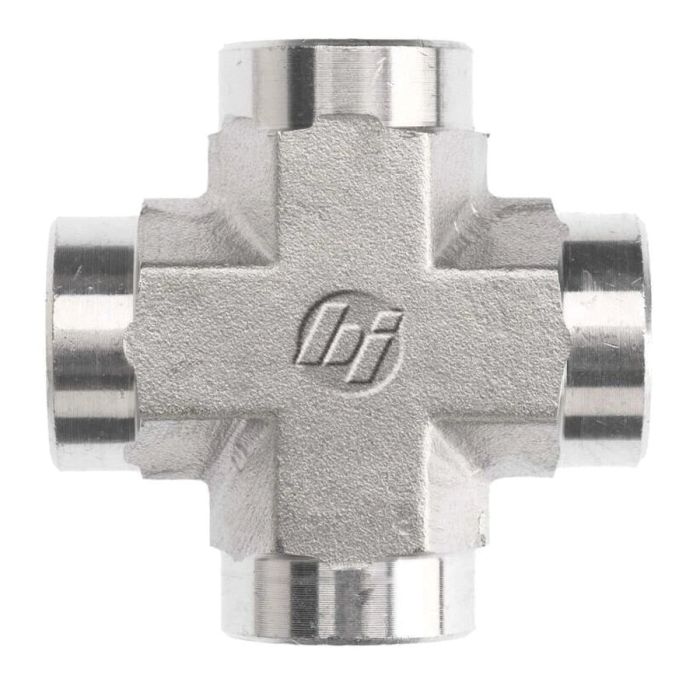

BRENNAN FP-FP-FP-FP CROSS -20

Description & Features

Crafted from high-quality steel forging, the Brennan FP-FP-FP-FP Cross -20 offers robust durability and reliable performance for industrial hydraulic applications. Designed with four identical female NPTF ports, each with a thread size of 1-1/4-11-1/2 as per SAE J476 standards, this cross fitting ensures secure and leak-free connections. The precision engineering of this component supports a seamless integration into hydraulic systems requiring multiple directional flows.

Measuring 3.400 mm in overall length, with a consistent centerline length of 1.700 mm for each connection point, the Brennan FP-FP-FP-FP Cross -20 is an optimal choice for complex hydraulic setups demanding precise alignment and sturdy construction. Its versatile design and adherence to stringent industry specifications make it suitable for various demanding industrial environments.

SKU: 5652-20-20-20-20-FG

Supplier Part Number (MPN): 5652-20-20-20-20-FG

Alternate Part Numbers: 5652-20-20-20-20, A2080-20-20S

Specifications

Brand
BRENNAN
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
Female SAE NPTF
Connection Type 3
Female SAE NPTF
Connection Type 4
Female SAE NPTF
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
Cross
l2 Dimensions
3.4 in
l Dimensions
3.4 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
1500 psi
Series
5652-FG Series
Thread 2 Drill Dimensions
1.25 in
Thread 3 Drill Dimensions
1.25 in
Thread 4 Drill Dimensions
1.25 in
Thread B1 Drill Dimensions
1.25 in
Thread Size
1-1/4-11-1/2

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Size 3 Connection Size 4 Thread Size Price Action
02FP-02FP-02FP-02FP CROSS

5652-02-02-02-02-FG

1/8 in

1/8 in

1/8-27

04FP-04FP-04FP-04FP Cross Forged

5652-04-04-04-04-FG

1/4 in

1/4 in

1/4-18

06FP-06FP-06FP-06FP CROSS

5652-06-06-06-06

3/8 in

3/8 in

3/8 in

3/8-18

08FP-08FP-08FP-08FP CROSS

5652-08-08-08-08-FG

1/2 in

1/2 in

1/2 in

1/2-14

12FP-12FP-12FP-12FP CROSS

5652-12-12-12-12-FG

3/4 in

3/4 in

3/4 in

3/4-14

32FP-32FP-32FP-32FP Cross Forged

5652-32-32-32-32-FG

2 in

2 in

2-11-1/2

Product Questions & Answers (1)

Question by: Marvin G on Jun 25, 2025, 2:29 PM
How long is this cross fitting, end to end?
Answer by: Customer Support on Jun 27, 2025, 8:04 AM
The overall length of this Brennan cross fitting is 3.400 mm.
