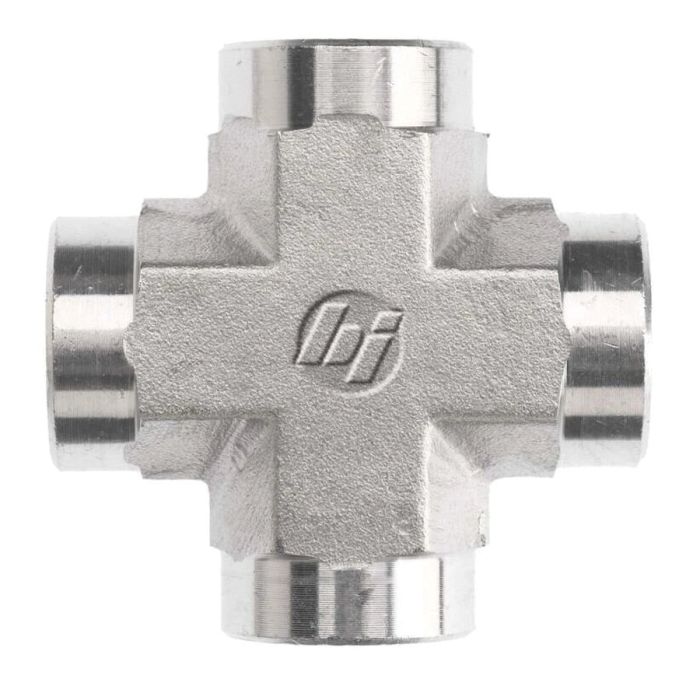

32FP-32FP-32FP-32FP Cross Forged

Constructed from a steel forging, the 32FP-32FP-32FP-32FP Cross Forged is a four-port cross fitting designed for use in high-demand hydraulic and industrial fluid systems. All four ports feature 2-inch, 11-1/2 TPI Female Nptf threads conforming to SAE J476, providing a dry-seal connection that resists leakage without the need for additional sealant.

Centerline lengths on all four legs measure 2.390 inches, with overall lengths of 4.780 inches in both principal directions, giving the fitting a balanced, symmetrical geometry suited to inline manifold or multi-directional flow distribution applications. Part of the Brennan 5652-Fg series, this fitting is manufactured from a steel forging for structural integrity and consistent thread form across all four ports.

California residents: This product is subject to Proposition 65 warnings.

SKU: 5652-32-32-32-32-FG

Supplier Part Number (MPN): 5652-32-32-32-32-FG

Alternate Part Numbers: 5652-32-32-32-32, A2080-32-32S
