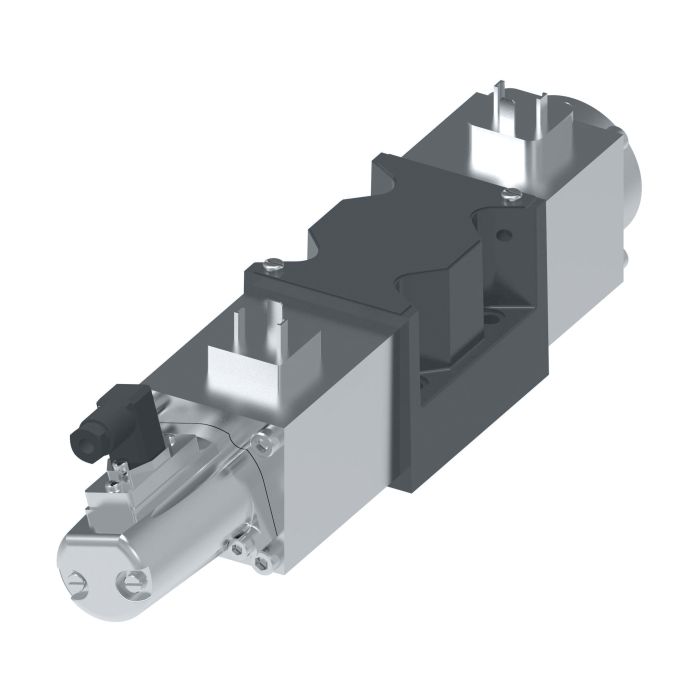

Vickers KFDG4V 5 2C70N Z M U1 H7 20

Ask A Question

Description & Features

The Eaton Vickers KFDG4V 5 2C70N Z M U1 H7 20 proportional valve offers three performance levels to suit diverse application requirements. This direct-acting valve is suitable for die casting and foundry use, machine tools, marine/offshore environments, presses, primary metal processing, paper manufacturing, test equipment and simulation, and turbine control (wind, steam, and water).

This Vickers valve features a Buna-N seal material and a flow rate of 70 liters per minute. Reduce commissioning time with plug-and-play functionality. Its width measures 2.76 inches.

SKU: 565463

Supplier Part Number (MPN): 565463

Alternate Part Numbers: C1KB61, KFDG4V52C70NZMU1H720

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid Controlled
Build Type
Spring Centered
Design Series
20 Series
Dimensions
13.19 in L x 2.76 in W x 4.18 in H
Feedback Sensor
With Feedback Sensor
igs Only
With igs
Language
English
Media
Anti-Wear Hydraulic Oil, Non-Alkyl Based Phosphate Ester
Metering
Meter-In/Meter-Out
Number of Stages
1
On Board Electronics
Without On Board Electronics
Performance
High
ProFX Compatible
Without ProFX Compatible
Reducer Module
Without Reducer Module
Reverse Flow Check
Without Reverse Flow Check
Seal Material
FKM
Series
KFDDG4V-5 20 Series
Spool Type
All Ports Blocked
Symmetric Flow
With Symmetric Flow
Valve Mount Type
Subplate

Product Questions & Answers (2)

Question by: Cindy G on Aug 29, 2025, 8:47 AM
what all is this valve rated to handle flow-wise, and is 70 LPM enough for a press application?
Answer by: Customer Support on Aug 31, 2025, 6:59 AM
Rated at 70 litres per minute, and yes, that puts it well within range for most press setups. Press applications are actually one of the listed use cases for this valve, alongside die casting, machine tool work, and turbine control, so it's not a stretch to say it was built with that kind of demand in mind. Being direct-acting also means response is more immediate compared to pilot-operated designs, which tends to matter in press cycles where timing is everything.
Question by: Hugh M on Feb 28, 2026, 8:13 AM
Can this valve handle dirty fluids or does it need a filter?
Answer by: Customer Support on Mar 2, 2026, 6:54 AM
Designed for applications like die casting and machine tools, this valve should operate reliably with typical hydraulic fluids, but keeping your system clean will always help extend its life.
