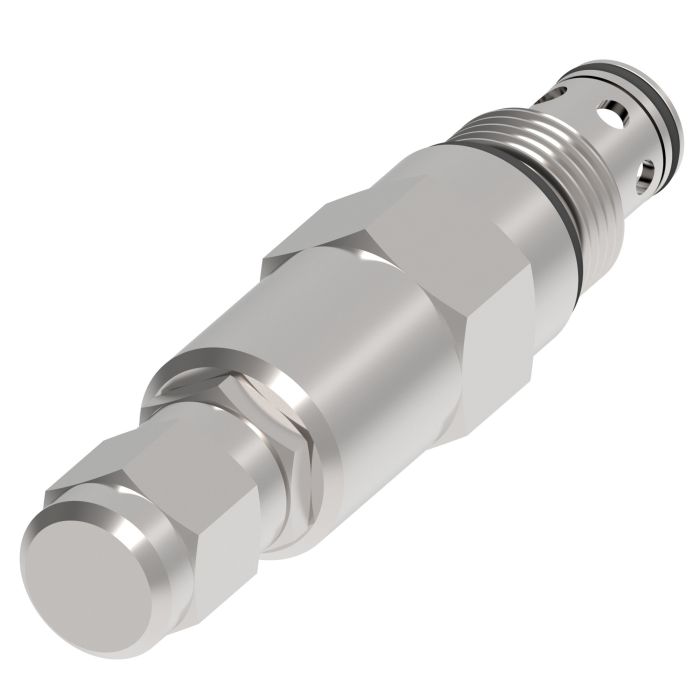

main product photo

VICKERS RV6 10 C 0 25/

Ask A Question

Description & Features

Designed for mobile and industrial hydraulic circuits, this ball-style pressure control valve handles flow rates up to 15 litres per minute and is rated to 350 bar (5,000 psi). The VICKERS RV6 10 C 0 25/ belongs to the Vickers by Danfoss/Eaton RV6-10 series, a line built for reliable pressure regulation in demanding environments including harvesters and refuse haulers.

Compact construction keeps installation footprint minimal, making it well suited for space-constrained mobile equipment without compromising flow control performance. Maximum operating flow across the broader series reaches 300 L/min (80 USgpm), giving specifiers flexibility when selecting across the range.

SKU: 565574

Supplier Part Number (MPN): 565574

Specifications

Brand
Vickers by Danfoss
Actuator Type
Direct Acting
Dimensions
3.06 in L x 1 in W x 1 in H
Nominal Size
10
Number of Ports/Ways
2-Port
Seal Material
Buna-N
Series
RV6-10 Series
Style
Ball

Product Questions & Answers (1)

Question by: Rhonda A on Jun 14, 2025, 9:25 PM
reckon this'll hold up on a rig running near full tilt all day long?
Answer by: Customer Support on Jun 16, 2025, 6:57 AM
Designed for demanding mobile and industrial hydraulic circuits, this Vickers RV6-10 valve is rated to 350 bar (5,000 psi), so it should handle continuous operation near its maximum pressure.
