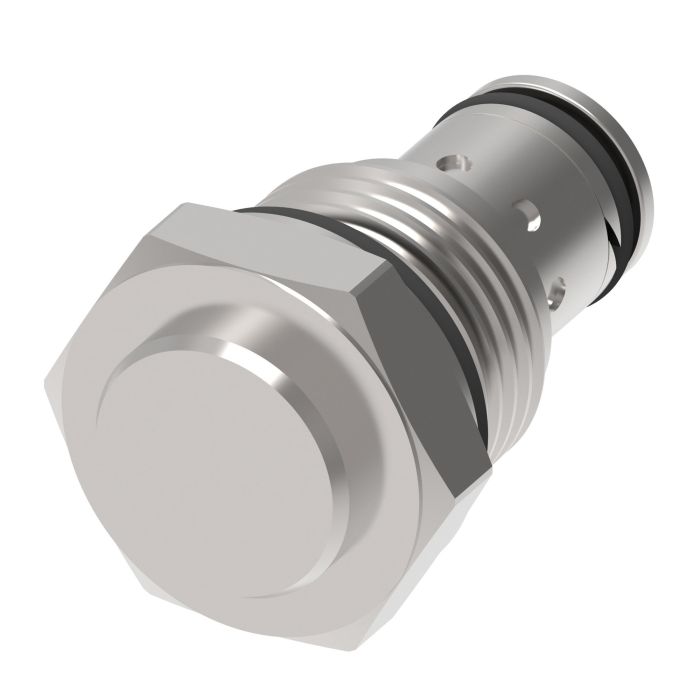

VICKERS CV1 10 P 0 15

Ask A Question

Description & Features

Designed for mobile and industrial hydraulic systems, this poppet-style check valve from Eaton Vickers is suited for demanding applications including harvesters and refuse haulers. The VICKERS CV1 10 P 0 15 is rated to 350 bar (5,000 psi) with a flow capacity of up to 45 litres per minute, making it a reliable fit for moderate-flow circuit protection requirements.

The CV1-10 Series uses a poppet design that supports consistent sealing performance across varying pressure conditions. Low spring settings contribute to reduced cracking pressure, which supports efficient flow management in systems where back-pressure sensitivity matters.

SKU: 565614

Supplier Part Number (MPN): 565614

Alternate Part Numbers: CV110P015

Specifications

Actuator Type
Direct Acting
Dimensions
1.56 in L x 1 in W x 1 in H
igs Only
With igs
Language
English
Mounting Type
Screw-In
Nominal Size
10
Number of Ports/Ways
2-Port
Seal Material
Buna-N
Series
CV1-10 Series
Style
Poppet

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Vince R on Jun 10, 2025, 11:26 AM
I'm using this on a harvester. Will this handle that kinda work?
Answer by: Customer Support on Jun 12, 2025, 10:20 AM
This CV1-10 series check valve is good for both mobile and industrial applications, including harvesters.
Question by: Melvin R on Dec 9, 2025, 11:47 AM
what's the max flow this check valve handles, and is it gonna hold up running on a refuse hauler day in and day out?
Answer by: Customer Support on Dec 10, 2025, 4:47 PM
Rated up to 227 liters per minute (60 US gpm) at a maximum pressure of 350 bar (5000 psi), so it has plenty of headroom for the demands of a refuse hauler application. The CV1-10 series is specifically listed for mobile applications like that, meaning it's built with that kind of repetitive, high-cycle workload in mind. The poppet style construction also tends to hold up well in environments where contamination and vibration are ongoing concerns.
