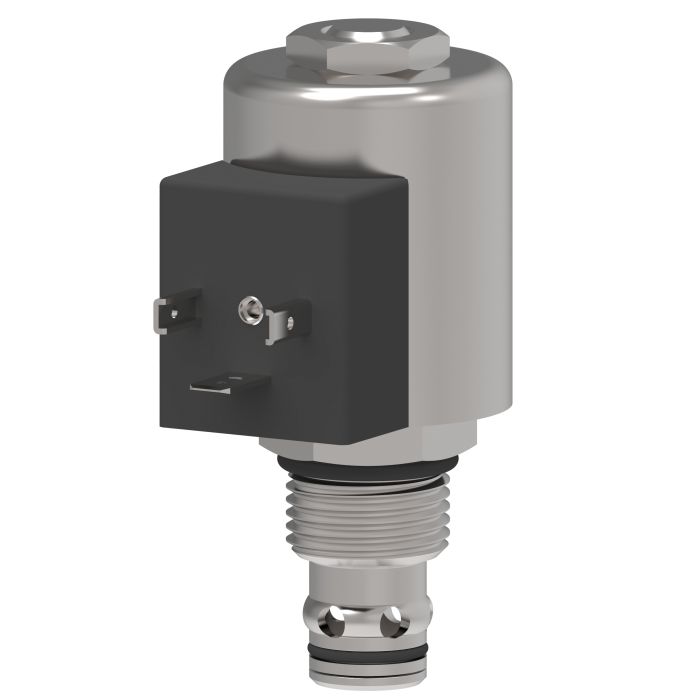

main product photo

VICKERS SV1 16 C 0 24DG

Ask A Question

Description & Features

Designed for mobile and industrial hydraulic circuits, this 2-way, 2-position normally closed solenoid valve from Eaton Vickers handles demanding duty across applications including harvesters and refuse haulers. The VICKERS SV1 16 C 0 24DG operates on a 24V DC coil and supports a flow rate of up to 132 litres per minute, with a rated pressure of 350 bar (5,000 psi).

Constructed from hardened and ground steel, the valve delivers consistent, reliable performance in compact form. Its economical design makes it well suited for both mobile equipment and stationary industrial installations where space and durability are priorities.

SKU: 565672

Supplier Part Number (MPN): 565672

Alternate Part Numbers: SV116C024DG

Specifications

Brand
Vickers by Danfoss
Configuration
Normally Closed
Dimensions
4.25 in L x 1.53 in W x 1.93 in H
Domestic/Import
Import
Installation Type
Screw-In Cartridge
Number of Ports/Ways
2-Way
Number of Positions
2
Segment Code
Q
Series
SV1-16-C/CM/CR Series

Product Questions & Answers (1)

Question by: Wade B on Oct 24, 2025, 12:29 PM
runs on 24 volt, right? just want to confirm before i order a replacement for the one on our refuse hauler
Answer by: Customer Support on Oct 26, 2025, 6:40 AM
Yes, 24VDC is correct for this valve. It's a 2-way, 2-position normally closed solenoid valve, so when the coil is not energized it stays closed, and energizing it at 24 volts opens flow. That normally closed behavior is worth knowing before you swap it in, just to make sure it matches how your system is wired to operate.
