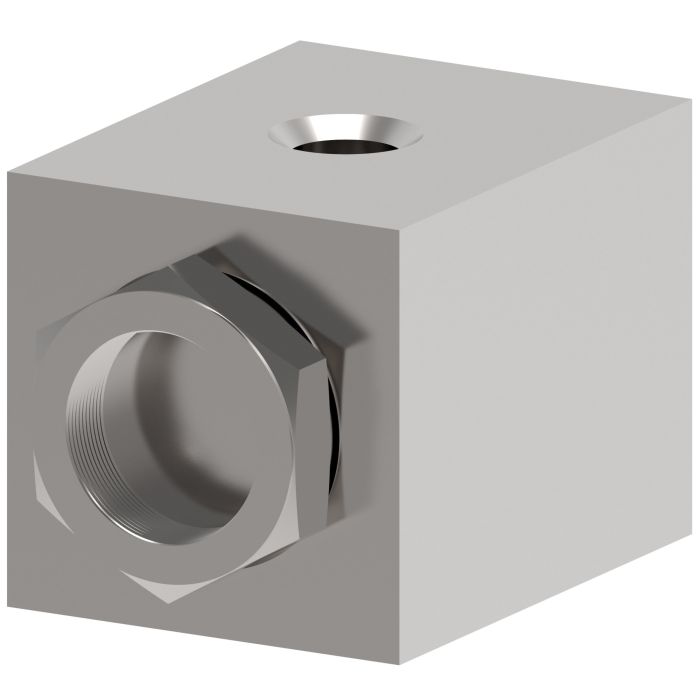

VICKERS DSV312BA8T

Ask A Question

Description & Features

Rated to 350 bar (5000 psi) with a flow capacity of up to 170 litres per minute, this ball-style check valve is built for demanding mobile and industrial hydraulic circuits. The Vickers DSV312BA8T belongs to the Eaton Vickers DSV3-B Series and features a 1/2" port size along with low spring settings that support high operational efficiency across a wide range of duty cycles.

Typical applications include harvesters, refuse haulers, and general mobile equipment where reliable non-return flow control is required. The combination of high pressure tolerance and a compact ball-style design makes it a practical fit for both mobile and stationary hydraulic systems.

SKU: 565932

Supplier Part Number (MPN): 565932

Specifications

Actuator Type
Direct Acting
Body Material
Aluminum
Connection Type
SAE
Dimensions
2-1/2 in L x 1-1/2 in W x 2 in H
End Type
SAE
igs Only
With igs
Language
English
Mounting Type
Screw-In
Nominal Size
#12
Number of Ports/Ways
3-Port
Seal Material
Buna-N
Series
DSV3-12 Series
Style
Ball

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Randy S on Apr 14, 2025, 4:01 PM
What size port does this Vickers valve have?
Answer by: Customer Support on Apr 16, 2025, 6:37 AM
It uses a 1/2" port size.
Question by: Johnny T on May 3, 2025, 1:37 PM
flow rate on this thing rated at 170 L/min or is that the max the whole series handles?
Answer by: Customer Support on May 5, 2025, 9:44 AM
The DSV312BA8T is rated up to 170 litres per minute for flow rate. The series overall can handle up to 227 L/min (60 USgpm), but this specific valve is spec'd at 170 L/min. Worth keeping that distinction in mind when sizing it for your system.
