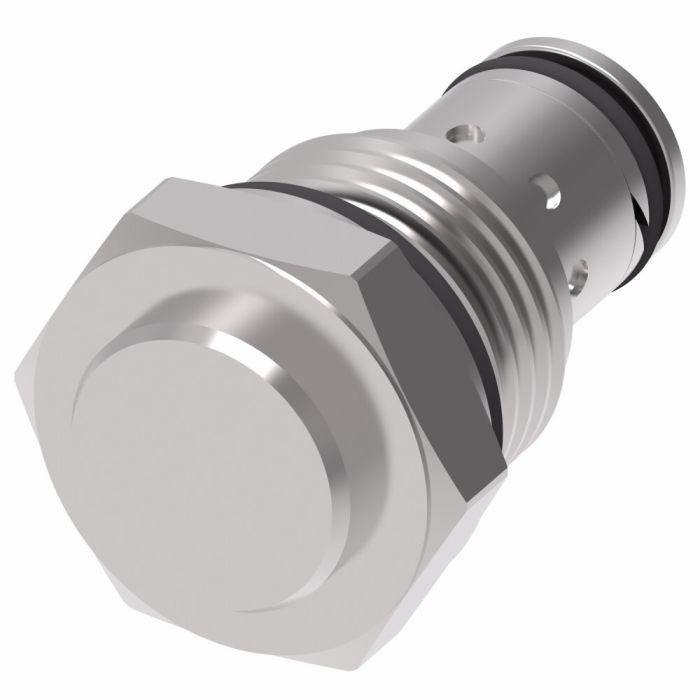

main product photo

VICKERS CV3 10 P 0 20

Ask A Question

Description & Features

Designed for demanding mobile and industrial hydraulic circuits, the Vickers CV3 10 P 0 20 is a poppet-style check valve built to handle pressures up to 350 bar (5,000 psi) and flow rates up to 227 L/min (60 USgpm). Its low spring settings support high operational efficiency across a broad range of duty cycles.

Typical applications include harvesters, refuse haulers, and general industrial hydraulic systems where reliable non-return flow control is required. The poppet construction provides positive sealing and consistent performance under variable load conditions.

Part of the Eaton Vickers CV3-10/CV13-10 series, this valve is a direct fit for equipment specifications calling for the alternate part number C1MZ64.

SKU: 566004

Supplier Part Number (MPN): 566004

Alternate Part Numbers: C1MZ64

Specifications

Actuator Type
Direct Acting
Dimensions
1.56 in L x 1 in W x 1 in H
igs Only
With igs
Language
English
Mounting Type
Screw-In
Nominal Size
10
Number of Ports/Ways
2-Port
Seal Material
Buna-N
Series
CV3-10 Series
Style
Poppet

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Clint J on Feb 4, 2026, 1:00 PM
got a machine spec’d for C1MZ64. is this CV3 10 P 0 20 a straight swap or am i gonna be fighting it
Answer by: Customer Support on Feb 6, 2026, 7:53 AM
The CV3 10 P 0 20 is part of the Eaton Vickers CV3-10/CV13-10 series and it is called out as a direct fit where the alternate part number C1MZ64 is specified.
Question by: Ross R on Sep 27, 2025, 6:08 AM
Got a harvester sittin' idle cause the check valve gave out, this the one I need? Part number on the old one's C1MZ64.
Answer by: Customer Support on Sep 28, 2025, 11:20 AM
C1MZ64 is listed as an alternate part number for this valve, so yes, that's a direct match. It's part of the Eaton Vickers CV3-10/CV13-10 series and built specifically for mobile equipment like harvesters. Poppet-style construction, rated to 350 bar (5,000 psi), and handles up to 227 L/min (60 USgpm). Should drop right in where the old one came out.
