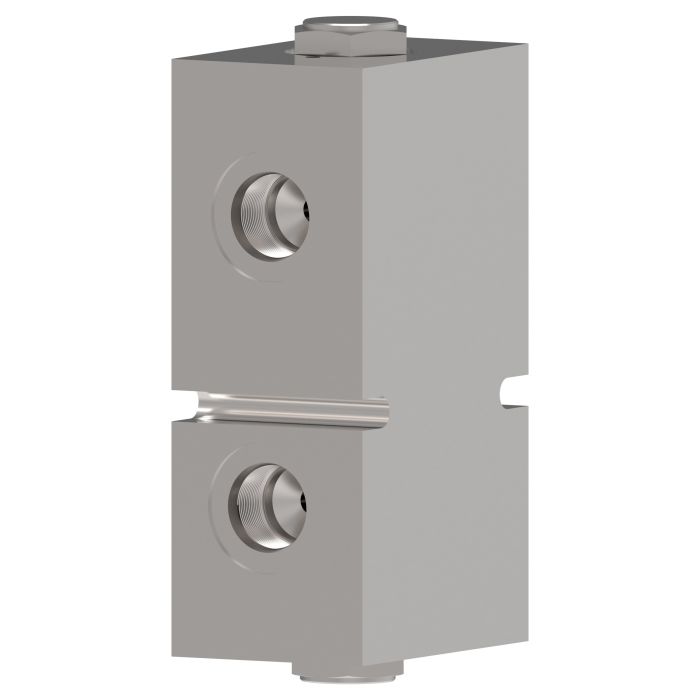

Vickers DPC1 16 P 12T

Description & Features

Designed for demanding environments, the Vickers DPC1 16 P 12T excels in mobile and industrial applications such as harvesters and refuse haulers. This check valve, engineered by Eaton Vickers, offers high operational efficiency with a robust pressure capacity of up to 350 bar (5000 psi) and a flow rate of 151 litres per minute. Its poppet style design ensures reliable performance and low spring settings, which contribute to its efficiency and effectiveness.

The valve features a 3/4" port size, ensuring compatibility with a range of hydraulic systems. With a compact product width of 2.07 inches, it fits seamlessly into various setups. The DPC1-16 Series is known for its durability and precision, making it a trusted choice for maintaining optimal hydraulic system performance.

SKU: 566050

Supplier Part Number (MPN): 566050

Alternate Part Numbers: DPC116P12T

Specifications

Actuator Type Pilot Operated	Body Material Aluminum	Connection Type SAE	Dimensions 5 in L x 1 in W x 4 in H	Mounting Type Screw-In	Nominal Size 3/4 in	Number of Ports/Ways 4-Way	Operator Type Pilot Operated	Pilot Ratio 4:1	Seal Material Buna-N	Series DPC1-10 Series	Style Poppet

Product Questions & Answers (2)

Question by: Larry W on Mar 2, 2026, 1:30 PM

what's the max pressure this check valve handles, and is it built for something like a refuse hauler or more of a stationary setup?

Answer by: Customer Support on Mar 3, 2026, 1:34 PM

Rated up to 350 bar (5000 psi) with a flow capacity of 227 L/min (60 USgpm), so it handles serious pressure. It works across both mobile and stationary setups. Refuse haulers, harvesters, and general industrial systems all fall within its intended use range, so you're not locked into one type of application.

Question by: Denise A on Jun 22, 2025, 9:33 AM

Will this check valve work okay in a hydraulic setup for a refuse truck?

Answer by: Customer Support on Jun 23, 2025, 1:54 PM

Refuse haulers are one of the listed applications for this Vickers DPC1-16 series check valve, so it should be suitable, assuming the specs align with your system's requirements.
