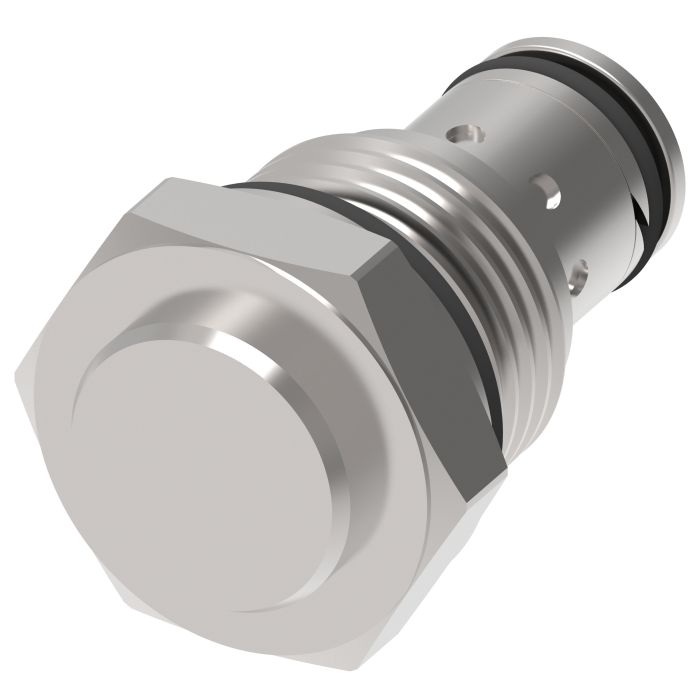

VICKERS CV1 10 P 0 100

Description & Features

The Vickers CV1-10 Series Check Valves are designed to deliver optimal performance across a range of demanding applications, including harvesters, refuse haulers, as well as various mobile and industrial settings. These poppet-style valves are engineered for high operational efficiency, supporting a maximum pressure of up to 350 bar (5000 psi) and a flow rate of 227 liters per minute (60 USgpm). The low spring settings ensure smooth operation, making these valves a reliable choice for controlling hydraulic flow in complex systems.

With a focus on durability and efficiency, the Vickers CV1 10 P 0 100 check valve excels in maintaining system integrity under high-pressure conditions. Supported by the trusted Vickers brand, these valves are crafted to meet the rigorous demands of industrial environments, ensuring longevity and consistent performance. Their compact design allows for easy integration into existing systems, providing a robust solution for fluid control.

SKU: 566360

Supplier Part Number (MPN): 566360

Specifications

Actuator Type Direct Acting	Body Material Aluminum	Cavity C-10-2	Connection Type SAE	Dimensions 39.624 mm L x 25.4 mm W x 25.4 mm H	Media Hydraulic Oil	Mounting Type Screw-In	Nominal Size 3/8 in	Number of Ports/Ways 2-Way	Packing Material Buna-N	Seal Material Buna-N	Series CV1-10 Series	Softgoods Material Buna-N	Style Poppet

Product Questions & Answers (1)

Question by: Harold B on Nov 18, 2025, 3:03 PM

Will this handle the flow rate on my splitter? I'm pushing about 40 liters per minute.

Answer by: Customer Support on Nov 20, 2025, 1:23 PM

This Vickers CV1-10 check valve can handle flow rates up to 45 liters per minute, so it should work fine for your splitter setup.
