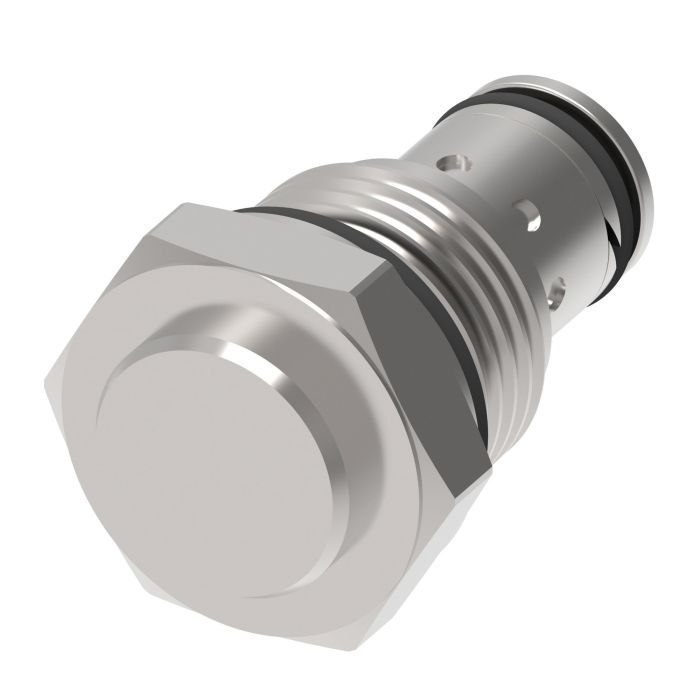

VICKERS CV1 10 P 0 30

Description & Features

Designed for mobile and industrial hydraulic circuits, this poppet-style check valve handles flow rates up to 45 litres per minute with a maximum pressure rating of 350 bar (5,000 psi). The low spring setting supports high operational efficiency across a range of duty cycles, making it well suited for demanding applications such as harvesters and refuse haulers.

The Vickers CV1 10 P 0 30 belongs to the CV1-10 series of screw-in cartridge check valves (SICV), produced under the Eaton Vickers brand. Its poppet construction provides reliable sealing and consistent performance in both mobile and stationary hydraulic systems.

SKU: 566377

Supplier Part Number (MPN): 566377

Alternate Part Numbers: CV110P030

Specifications

Actuator Type Direct Acting	Dimensions 1.56 in L x 1 in W x 1 in H	igs Only With igs	Language English	Mounting Type Screw-In	Nominal Size 10	Number of Ports/Ways 2-Port	Seal Material Buna-N	Series CV1-10 Series	Style Poppet

Product Questions & Answers (1)

Question by: Vince W on May 20, 2025, 9:33 PM

flow rate on this valve says 45 L/min in the specs but the features mention 227 L/min at 60 gpm -- which one actually applies to this unit?

Answer by: Customer Support on May 22, 2025, 6:09 AM

The 45 litre per minute figure is the rated flow for this specific valve configuration. The 60 USgpm and 227 L/min values reflect the broader CV1-10 series ceiling, not what this particular unit is sized for. If your system runs close to or above 45 L/min, you'd want to look at a higher-flow variant in the same series rather than push this one past its rating.
