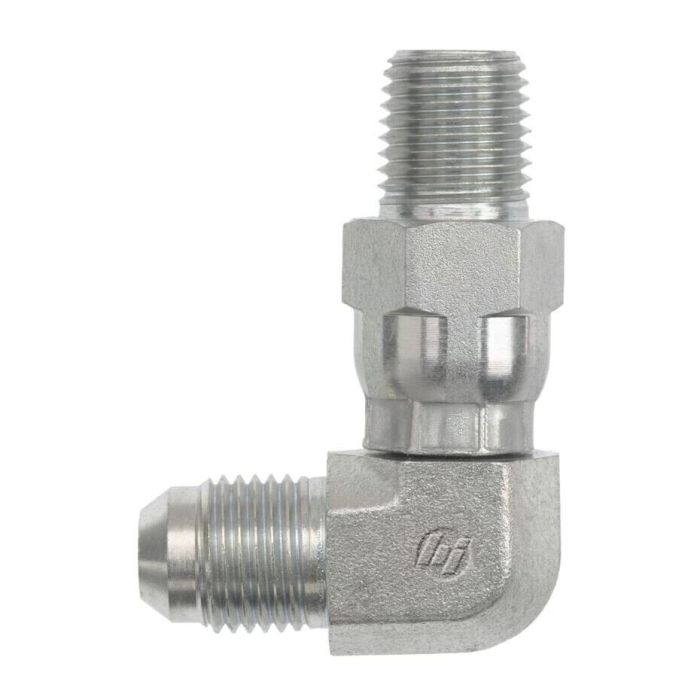

04MJ-04MPS 90 ELBOW FORGED

Ask A Question

Description & Features

This forged 90-degree elbow, part number 5701-04-04-FG, features a male JIC SAE 37-degree flare on one end and a male NPTF swivel on the other. The 04MJ-04MPS 90 ELBOW FORGED is constructed from steel forging and belongs to the Brennan 5701-FG series.

The thread specifications for this fitting include a 7/16-20 thread size with SAE J514 specification for the B1 thread, and a 1/4-18 thread size with SAE J476 specification for the B2 thread. Centerline length measures 1.051 mm, with an overall length of 1.506 mm.

SKU: 5701-04-04-FG

Supplier Part Number (MPN): 5701-04-04-FG

Alternate Part Numbers: 2501-S-04-04, A2249-4-4S

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male JIC, MNPT Swivel
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF Swivel
Dimension Standards
SAE J476, SAE J514
Dimensions
1.506 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
0.563 in
l Dimensions
1.506 in
Material
Steel
Material Construction
AISI 1045 Steel
Operating Temperature
-40 to 250 deg F
Series
5701-FG Series
Thread 2 Drill Dimensions
0.22 in
Thread B1 Drill Dimensions
0.172 in
Thread B2 Drill Dimensions
0.22 in
Thread Size
7/16-20, 1/4-18
