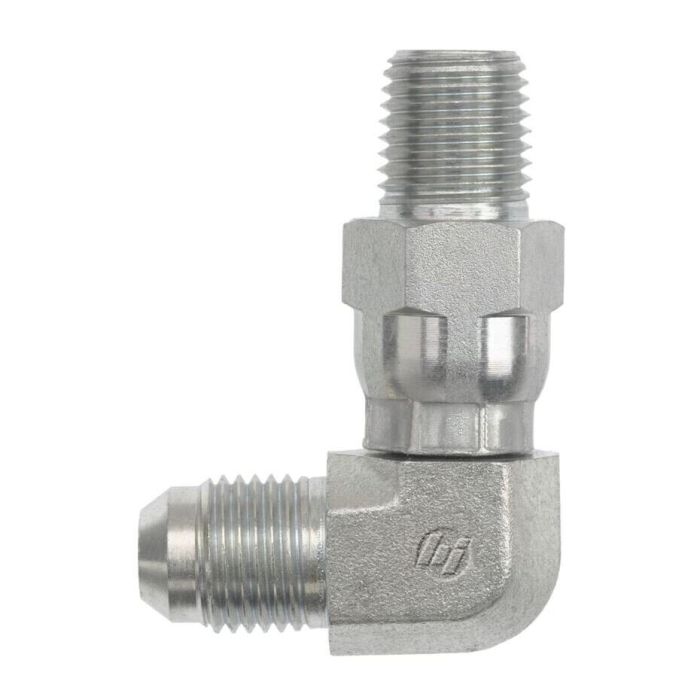

main product photo

BRENNAN 3/8 MJ 3/8 MPS 90 ELB FORG

Ask A Question

Description & Features

This forged steel elbow fitting features a 90-degree angle and is part of the Brennan 5701-FG series. It includes a 3/8-18 Male NPTF Swivel (B2) thread type conforming to SAE J476 standards and a 9/16-18 Male JIC SAE 37 Degree Flare (B1) thread type that meets SAE J514 specifications.

The Brennan 3/8 MJ 3/8 MPS 90 ELB FORG is constructed from steel forging raw material. Key dimensions include a 1.140 mm centerline length and a 1.660 mm overall length.

SKU: 5701-06-06-FG

Supplier Part Number (MPN): 5701-06-06-FG

Specifications

Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male JIC, MNPT Swivel
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE NPTF Swivel
Dimension Standards
SAE J476, SAE J514
Dimensions
1.66 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
3/4 in
l Dimensions
1.66 in
Material
Steel
Material Construction
AISI 1045 Steel
Operating Temperature
-40 to 250 deg F
Series
5701-FG Series
Thread 2 Drill Dimensions
0.34 in
Thread B1 Drill Dimensions
0.297 in
Thread B2 Drill Dimensions
0.34 in
Thread Size
3/8-18, 9/16-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Brenda P on Jul 16, 2025, 9:07 PM
So this is a 90 degree elbow, right? Just want to make sure I'm seeing that correctly.
Answer by: Customer Support on Jul 18, 2025, 9:44 AM
Correct, this is a 90-degree forged steel elbow fitting.
