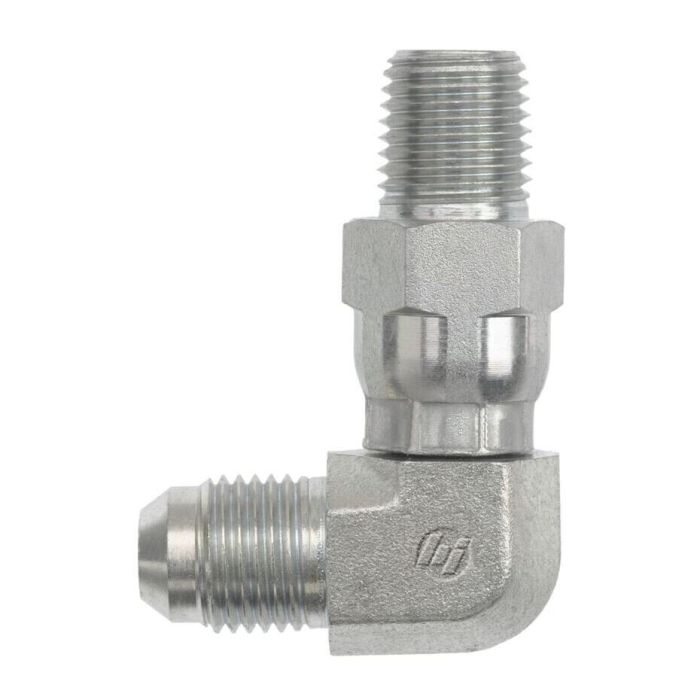

90DEG MJIC X M-PIPE SWIVEL

The 90DEG MJIC X M-PIPE SWIVEL is a high-quality hydraulic component designed for robust industrial applications. This elbow fitting, crafted from durable steel forging, features a 90-degree male JIC SAE 37-degree flare to male NPTF swivel connection. The fitting adheres to SAE J514 and SAE J476 thread specifications, ensuring reliable and secure connections under demanding conditions.

With a Brennan Series designation of 5701-FG, this product is engineered for precision and reliability. It boasts a centerline length of 1.330 mm and an overall length of 2.150 mm, making it suitable for compact installations. The connection dimensions are 3/4-16 for Thread B1 and 1/2-14 for Thread B2, with corresponding drill sizes of 0.391 mm and 0.44/0.46 mm, respectively.

Manufactured by Brennan Industries Inc, this swivel fitting also comes with a PROP-65 warning for California residents. The item is identified with the Supplier Part Number 5701-08-08-FG, ensuring easy reference and replacement.

SKU: 5701-08-08-FG

Supplier Part Number (MPN): 5701-08-08-FG
