04FP-04MPS 90 ELB FORG

Ask A Question

Description & Features

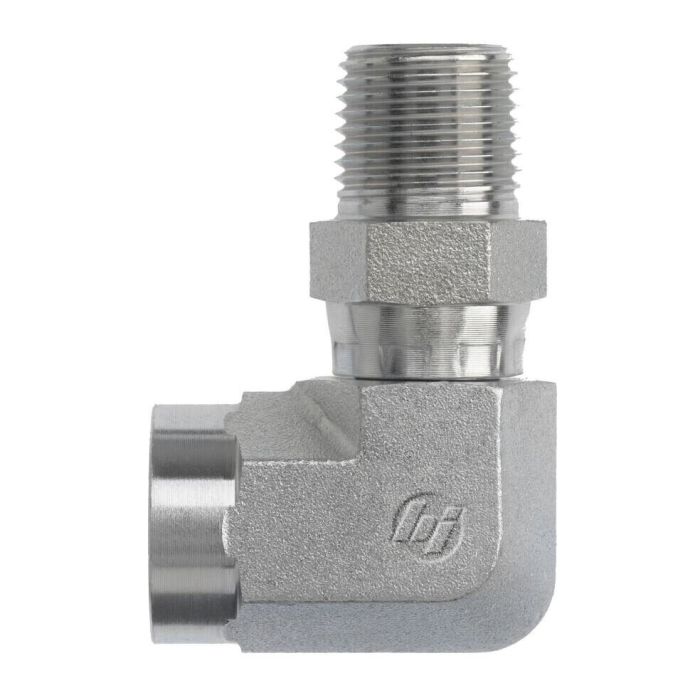

This forged steel 90-degree elbow features a 1/4-18 Female NPTF thread on one end and a 1/4-18 Male NPTF Swivel thread on the other. The 04FP-04MPS 90 ELB FORG is part of the Brennan 5702-FG series.

It has a C Hex 1 measurement of 0.625 mm and a centerline length 1 measurement of 0.880 mm, with an overall length L of 1.560 mm.

SKU: 5702-04-04-FG

Supplier Part Number (MPN): 5702-04-04-FG

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
FNPT, MNPT Swivel
Connection Type 1
Female SAE NPTF
Connection Type 2
Male SAE NPTF Swivel
Dimension Standards
SAE J476
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
3/4 in
l Dimensions
1.56 in
Material
Steel
Material Construction
AISI C1045 Steel
Operating Temperature
-40 to 250 deg F
Series
5702-FG Series
Thread 2 Drill Dimensions
0.22 in
Thread B1 Drill Dimensions
0.281 in
Thread Size
1/4-18

Product Questions & Answers (1)

Question by: Ronnie G on Oct 19, 2025, 6:33 AM
Reckon this elbow fitting'll hold up alright for hooking up some hydraulic lines on my backhoe?
Answer by: Customer Support on Oct 20, 2025, 6:53 AM
Designed for use with hydraulic systems, this forged steel elbow provides a reliable 90-degree connection between a female NPTF thread and a male NPTF swivel thread, both sized at 1/4-18.
