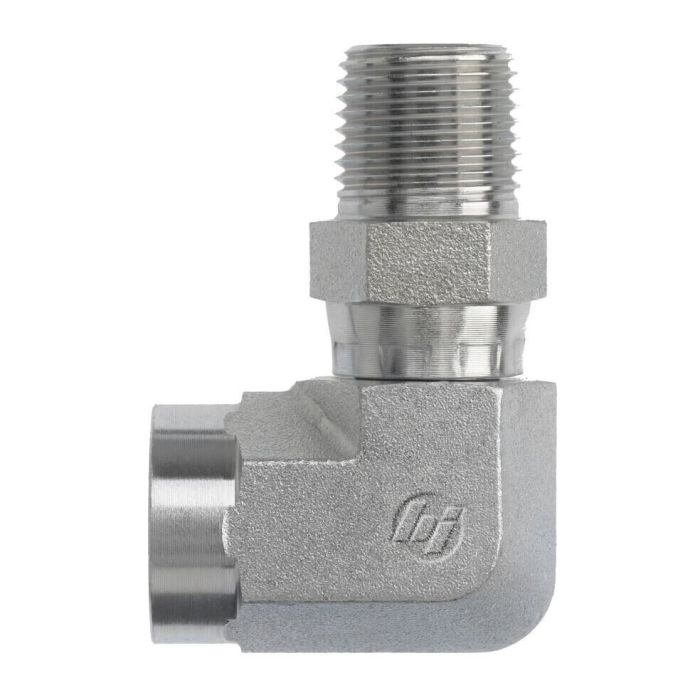

08FP-08MPS 90 ELB FORG

Ask A Question

Description & Features

The 08FP-08MPS 90 ELB FORG by Brennan Industries Inc is expertly crafted from high-quality steel forging ensuring durability and reliability in various industrial applications. This 90-degree elbow fitting is part of the 5702-FG series featuring a female NPTF and a male NPTF swivel thread both conforming to SAE J476 specifications.

With a centerline length of 1.230 mm and an overall length of 2.010 mm this forged elbow is designed for optimal performance. The female NPTF thread size is 1/2-14 with a drill measurement of 0.531 mm while the male NPTF swivel thread size is 1/2-14 with a drill measurement ranging from 0.44 to 0.46 mm.

This product is compliant with Prop-65 regulations highlighting the commitment to safety for California residents. The C-hex measurement is 0.937 mm ensuring a tight and secure fit in challenging environments.

Supplier Part Number: 5702-08-08-FG

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
FNPT, MNPT Swivel
Connection Type 1
Female SAE NPTF
Connection Type 2
Male SAE NPTF Swivel
Dimension Standards
SAE J476
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.06 in
l Dimensions
2.01 in
Material
Steel
Material Construction
AISI C1045 Steel
Operating Temperature
-40 to 250 deg F
Series
5702-FG Series
Thread 2 Drill
0.44 in, 0.46 in
Thread 2 Drill Dimensions
0.44/0.46 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14

Product Questions & Answers (2)

Question by: Roger A on Mar 21, 2025, 9:40 AM
How's the 08FP-08MPS 90deg Elbow Forged used in hydraulic systems?
Answer by: Customer Support on Mar 23, 2025, 6:58 AM
This elbow fitting is typically utilized in hydraulic systems where a right-angle turn is needed in the piping or tubing, allowing for efficient direction changes without compromising the system's integrity.
Question by: Danny T on Nov 24, 2025, 12:37 PM
What angle does this fitting make when connected?
Answer by: Customer Support on Nov 26, 2025, 6:04 AM
Creates a 90-degree bend in your hydraulic line. It's a forged elbow fitting that changes the direction of flow at a right angle, which comes in handy when you need to route hoses or tubing around obstacles or make tight turns in your system.
