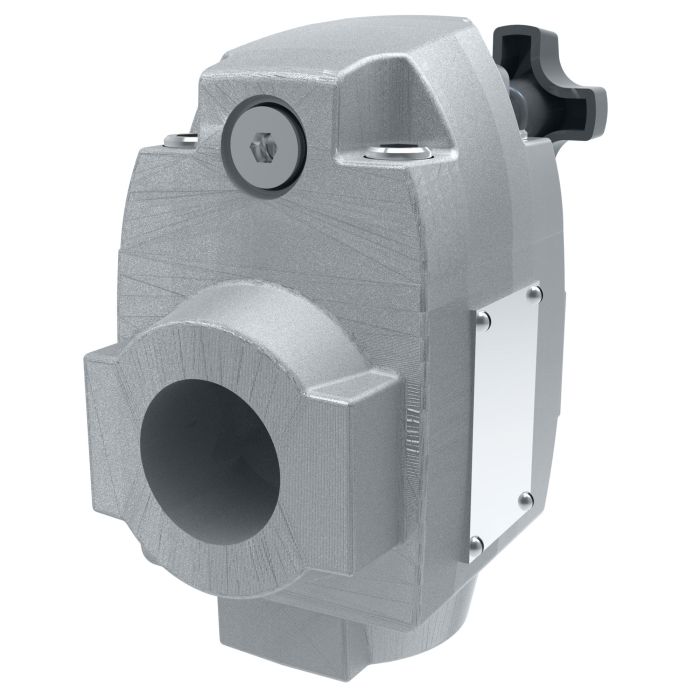

VICKERS CS 06 FV 50

Description & Features

The Eaton Vickers CS 06 FV 50 valve is designed for applications needing adjustable pressure relief or regulation. This valve effectively limits pressure in a hydraulic circuit to a desired maximum.

The VICKERS CS 06 FV 50 is constructed with Buna-N seals, offering reliable performance. It can handle a flow rate of up to 227 liters per minute and has a product width of 2.58 inches.

SKU: 572268

Supplier Part Number (MPN): 572268

Specifications

Actuator Type Pilot Operated	Adjustment Type Knob	Body Material Iron	Design 50 Series	Dimensions 6.63 in L x 2.58 in W x 5.64 in H	Domestic/Import Domestic	Drain Internal	Gauge Port Thread SAE 10 7/8–14 UNF	Hi-Vent Spring With Hi-Vent Spring	Indicator Light Without Indicator Light	Media Petroleum Oil	Nominal Size #06	Number of Ports/Ways 3-Port	Number of Stages 2	Performance Standard	Seal Material Buna-N	Segment Code B	Series CS-06 Series	Valve Mount Type 1-5/8-12 UNF-2B Straight Thread

Product Questions & Answers (1)

Question by: Phil K on Apr 5, 2025, 1:45 PM

flow rate on this one is listed at 227 liters per minute -- is that enough for most standard hydraulic pressure relief setups or is that on the lower end?

Answer by: Customer Support on Apr 6, 2025, 5:57 PM

For a wide range of industrial hydraulic circuits, 227 litres per minute is genuinely capable flow capacity. Pressure relief and regulating valves at this size class handle the majority of mid-to-heavy duty applications without issue. If your system is running well under that ceiling, you have solid headroom to work with and the valve won't be straining at normal operating demands.
