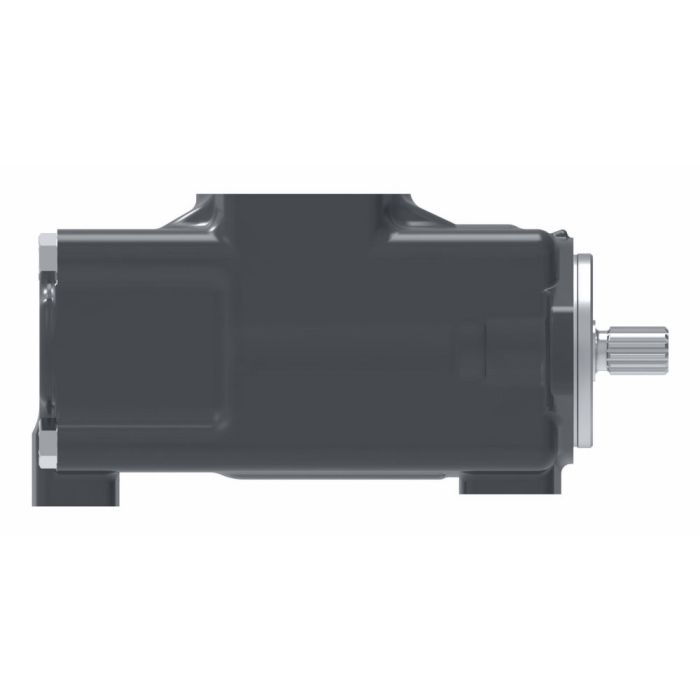

VICKERS 3520VQ30A12 1CC20

Ask A Question

Description & Features

Designed for demanding industrial environments, the Vickers 3520VQ30A12 1CC20 is a double vane pump built on the proven VQ series platform from Vickers by Danfoss/Eaton. Cast iron construction and Buna-N seals contribute to reliable performance across high-pressure, high-speed duty cycles, with a flow rate of 215.1 litres per minute supporting capacity-intensive applications.

This pump is suited for a broad range of industrial uses, including plastics machinery, press machines, die casting, machine tools, test equipment, primary metals processing, pulp and paper, wood processing, oil and gas, and marine applications. The VQ series design prioritizes outstanding volumetric efficiency and extended service life, making it a well-established choice where consistent hydraulic output and durability are critical requirements.

SKU: 576289-3

Supplier Part Number (MPN): 576289-3

Specifications

Brand
Vickers by Danfoss
Cartridge Type
20 Design
Dimensions
13.77 in L x 8.38 in W x 6.41 in H
Displacement
5.9 cu-in Shaft, 2.5 cu-in Cover
Drive Shaft Type
Straight Keyed
Flow Rate
30 gpm Shaft, 12 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
4-Bolt Flanged
nmfc
77.50
Outlet Size
3/4 in, 1-1/4 in
Rotation Direction
Clockwise
Seal Material
Buna-N
Segment Code
A
Series
3520 Series
Vane Type
Fixed Displacement and Balanced

Product Questions & Answers (1)

Question by: Peggy G on Oct 8, 2025, 6:43 AM
Reckon this would be alright for running a plastics molding machine?
Answer by: Customer Support on Oct 9, 2025, 11:11 AM
It's well-suited for plastics machinery applications, yes. Built with cast iron and Buna-N seals, it should hold up to the demands of that kind of work.
