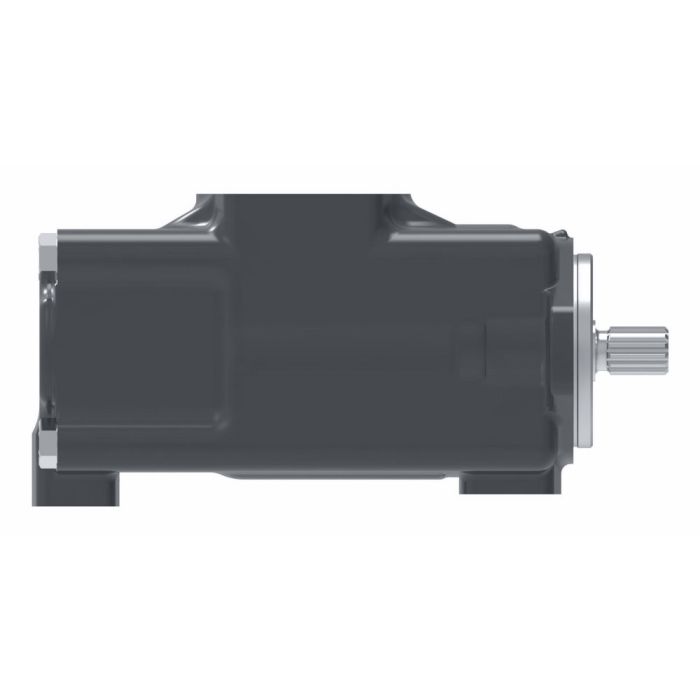

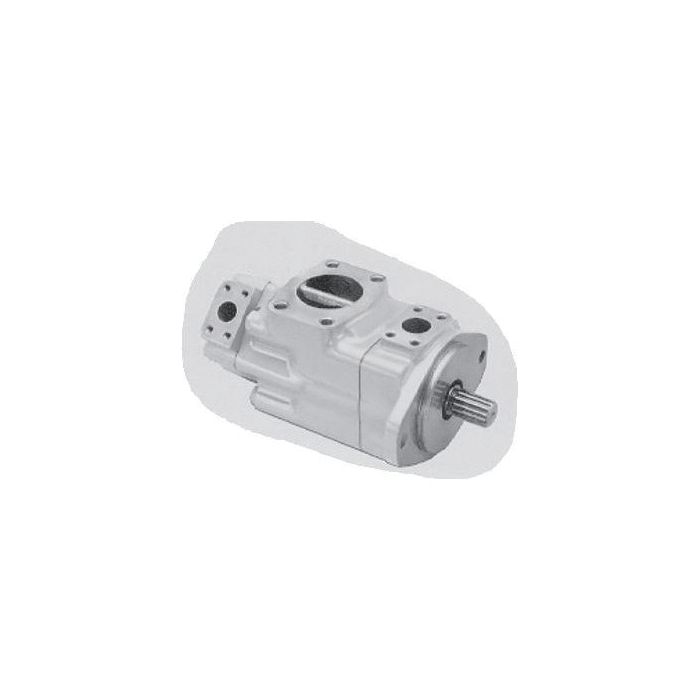

main product photo

3525VQ30A17 86AA20

Ask A Question

Description & Features

Built for demanding industrial environments, the 3525VQ30A17 86AA20 is a double vane pump from the Vickers by Danfoss 3525VQ series, engineered for high-pressure, high-speed hydraulic applications. Cast iron construction and Buna-N seals contribute to long service life across continuous-duty cycles.

With a flow rate of approximately 215 litres per minute, this pump is well suited for plastics machinery, press machines, die casting equipment, machine tools, and test equipment. It also sees regular use in primary metals processing, pulp and paper, wood processing, oil and gas, and marine environments. Outstanding volumetric efficiency makes it a reliable choice where consistent output under load is essential.

SKU: 579768-1

Supplier Part Number (MPN): 579768-1

Specifications

Brand
Vickers by Danfoss
Cartridge Type
Intra-Vane
Design Code
20
Dimensions
14.95 in L x 8.38 in W x 6.405 in H
Displacement
97.7 cc/rev Shaft, 55.2 cc/rev Cover
Drive Shaft Type
Straight Keyed
Flow Rate
30 gpm Shaft, 17 gpm Cover
Housing Material
Iron
Inlet Type
SAE 4-Bolt Flange
Maximum Operating Pressure
3000 psi
Mounting Type
Flange
Number of Stages
2
Outlet Position From Cover Wrt Inlet
O1-Opposite O2-135 CCW
Outlet Type
SAE 4-Bolt Flange
Port Connections
I, 01, 02 SAE 4-Bolt Flange
Pump Type
Vane Pump Flex Plate, Quiet
Rotation Direction
Clockwise
Seal Material
Nitrile
Series
3525VQ Series

Product Questions & Answers (1)

Question by: Floyd M on Nov 8, 2025, 6:29 PM
Would this work okay for a plastics injection molding machine?
Answer by: Customer Support on Nov 10, 2025, 9:16 AM
It should. These pumps are frequently used in plastics machinery, as well as die casting equipment and press machines.
