VICKERS RT 10 F4 30

Description & Features

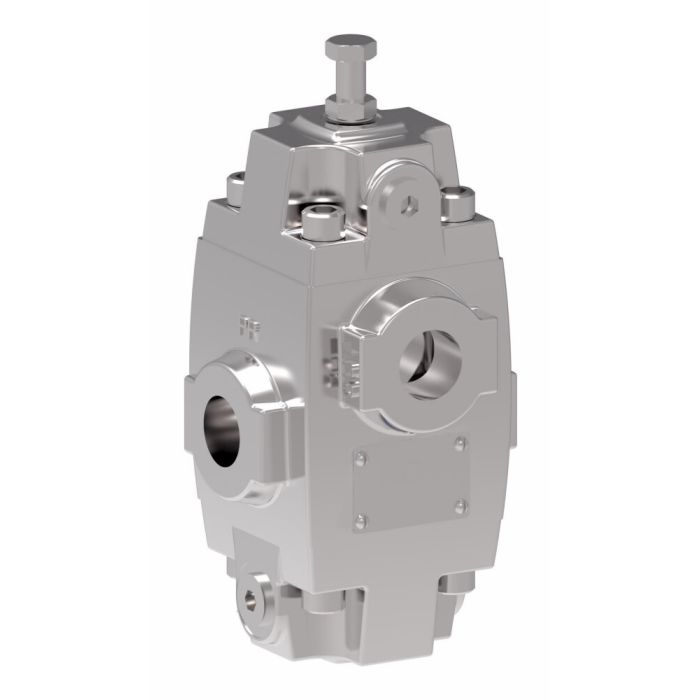

The Eaton Vickers RT 10 F4 30 pressure control valve is designed for applications requiring an adjustable pressure relief or regulating valve. This valve limits the pressure in a hydraulic circuit to a desired maximum.

Features a plug-and-play design and moisture resistant construction. It offers high-performance features and a maximum flow rate of 284 liters per minute. The seal material is Buna-N, and the product width is 4.25 inches.

SKU: 597134

Supplier Part Number (MPN): 597134

Alternate Part Numbers: RT10F430

Specifications

Actuator Type Pilot Operated	Adjustment Type Screw with Locknut	Check Valve Without Check Valve	Design 30 Series	Dimensions 4.63 in L x 4.25 in W x 11.11 in H	Domestic/Import Domestic	Drain Internal	Hi-Vent Spring Without Hi-Vent Spring	Indicator Light Without Indicator Light	Language English	Media Petroleum Oil	Nominal Size 10	Number of Stages 2	Performance Standard-Performance	Seal Material Nitrile	Series RT-10 30 Series	Valve Mount Type Subplate/Manifold

Product Questions & Answers (2)

Question by: Eddie T on Mar 21, 2026, 7:04 AM

flow rate on this one is listed at 284 LPM, that enough for most standard hydraulic relief setups or is it on the lower end?

Answer by: Customer Support on Mar 22, 2026, 4:45 PM

For a good chunk of pressure relief applications, 284 litres per minute is plenty. This valve is built to limit circuit pressure to a set maximum, so as long as your system flow demands fall within that range, you're in solid shape. It's not a low-capacity unit by any stretch.

Question by: Gene C on Mar 28, 2025, 9:07 AM

Will this handle 250 liters per minute without issues?

Answer by: Customer Support on Mar 30, 2025, 6:23 AM

This Vickers valve can handle up to 284 liters per minute, so you should be good.
