6000 Series Heavy Duty Lever Kit

Description & Features

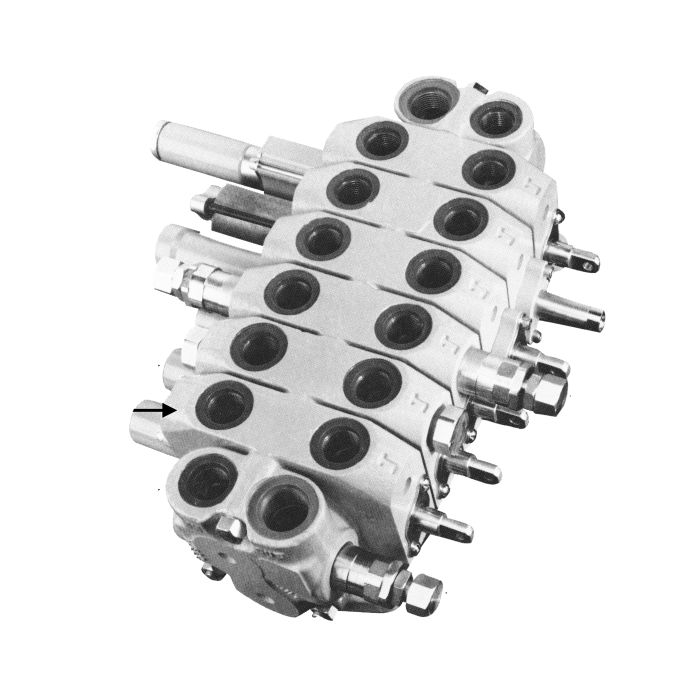

Designed for use with Husco Model 6000 sectional directional control valves, the 6000 Series Heavy Duty Lever Kit provides a reliable manual actuation option for parallel circuit valve assemblies operating at up to 3,400 PSI. The kit supports configurations where two or more spools may be actuated simultaneously, with flow directed according to load resistance and metering position.

Husco's 6000 Series valves feature hard chrome plated spools, zero leak spool seals, and low-effort spool actuation, with a load check built into each section. Single low-pressure o-ring sealing is used between sections, and precision metering is standard. Buna-N seals are included as standard, with Viton® available as an option. Maximum outlet port tank core pressure is rated at 250 PSI. Valve assemblies can be configured for open center or closed center operation by selecting the appropriate outlet cover.

SKU: N6105-A

Supplier Part Number (MPN): N6105-A

Alternate Part Numbers: C1JL48

Specifications

Key (6)	Sg Available Options Valve Assemblies Can be Made Power Beyond or Closed Center by Selecting and Configuring the Appropriate Outlet Cover	Sg How It Works In A Parallel Circuit Valve Assembly, Two or More Spools May be Actuated at the Same Time and the Oil will Follow the Path of Least Resistance, if the Loads are Different and the Spools are Fully Shifted, the Lightest Load will Operate First, if the Spool	Sg Seals Buna-N Standard, FKM Optional	Suitable For Use With 6000 Series Directional Control Valves

Product Questions & Answers (2)

Question by: Danny B on Sep 12, 2025, 4:59 PM

Running two spools at the same time on my 6000 series setup, will the oil just split evenly or does it go to whichever load pulls easiest?

Answer by: Customer Support on Sep 14, 2025, 6:58 AM

When both spools are fully shifted, the oil follows the path of least resistance, so the lighter load will move first. That's just how parallel circuit assemblies work. Now, if you back off and meter the spools instead of going full stroke, you can actually get partial flow going to both loads at the same time. It takes a little feel to get it dialed in, but it's doable.

Question by: Pete S on Jul 15, 2025, 5:13 PM

Will this here lever kit work on my Husco 6000 valve?

Answer by: Customer Support on Jul 17, 2025, 6:10 AM

this heavy-duty lever kit is designed specifically for the Husco Model 6000 sectional directional control valves.
