6000 Series Heavy Duty Lever Kit

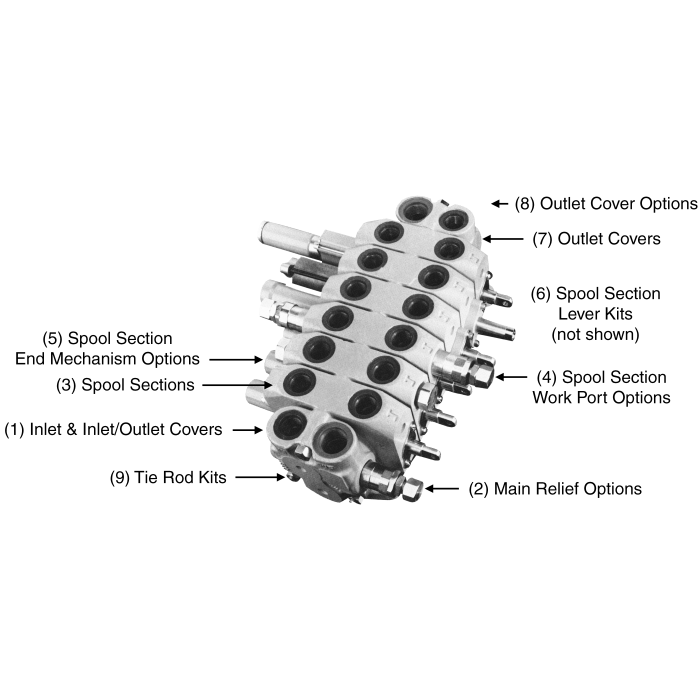

Designed for use with Husco Model 6000 sectional directional control valves, the 6000 Series Heavy Duty Lever Kit provides a reliable manual actuation option for parallel circuit valve assemblies operating at up to 3,400 PSI. The kit supports configurations where two or more spools may be actuated simultaneously, with flow directed according to load resistance and metering position.

Husco's 6000 Series valves feature hard chrome plated spools, zero leak spool seals, and low-effort spool actuation, with a load check built into each section. Single low-pressure o-ring sealing is used between sections, and precision metering is standard. Buna-N seals are included as standard, with Viton® available as an option. Maximum outlet port tank core pressure is rated at 250 PSI. Valve assemblies can be configured for open center or closed center operation by selecting the appropriate outlet cover.

SKU: N6105-A

Supplier Part Number (MPN): N6105-A

Alternate Part Numbers: C1JL48
