Male Orfs X Male Bspp C/W Seal

Description & Features

This straight steel fitting is a Male Orfs X Male BSPP C/W Seal.

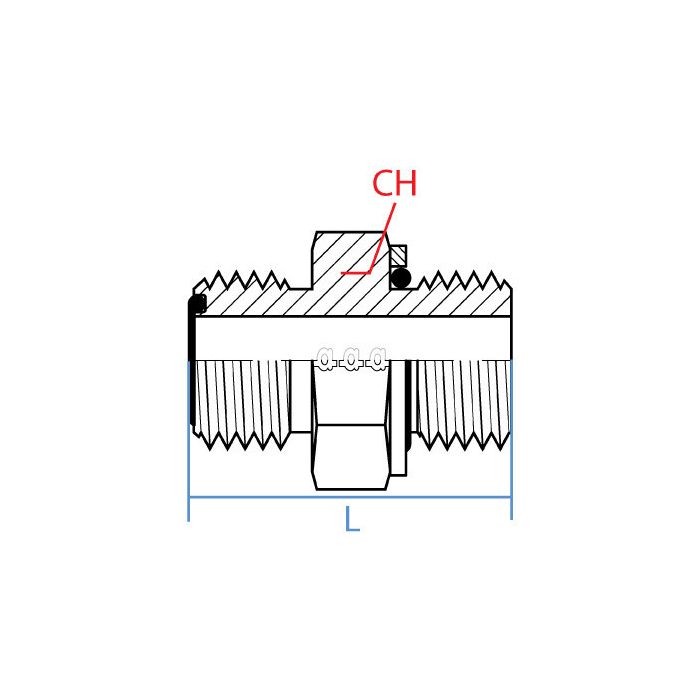

It features a 3/8" Orfs male connection with an 11/16 - 16 UN callout on one side and a 1/2" BSPP male connection with a G 1/2 - 14 callout on the other. The Adaptall fitting has a length of 35.3mm, and a width of 27mm.

SKU: 6002-06-08

Supplier Part Number (MPN): 6002-06-08

Specifications

CH Width 27mm	L Length 35.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 11/16 - 16 UN	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Orfs	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6002-06-08	Product Weight 0.20 lbs

Product Questions & Answers (1)

Question by: Harvey R on Oct 1, 2025, 12:05 PM

got a hose end that’s 3/8 ORFS, will this screw right on and adapt it over to 1/2 BSPP?

Answer by: Customer Support on Oct 3, 2025, 10:35 AM

On the ORFS side you are working with a 3/8 inch male ORFS thread (11/16 - 16 UN). The other end is a 1/2 inch male BSPP with a G 1/2 - 14 callout. It’s a straight steel adapter and it comes with a seal.
