Male Orfs X Male Bspp C/W Seal

Ask A Question

Description & Features

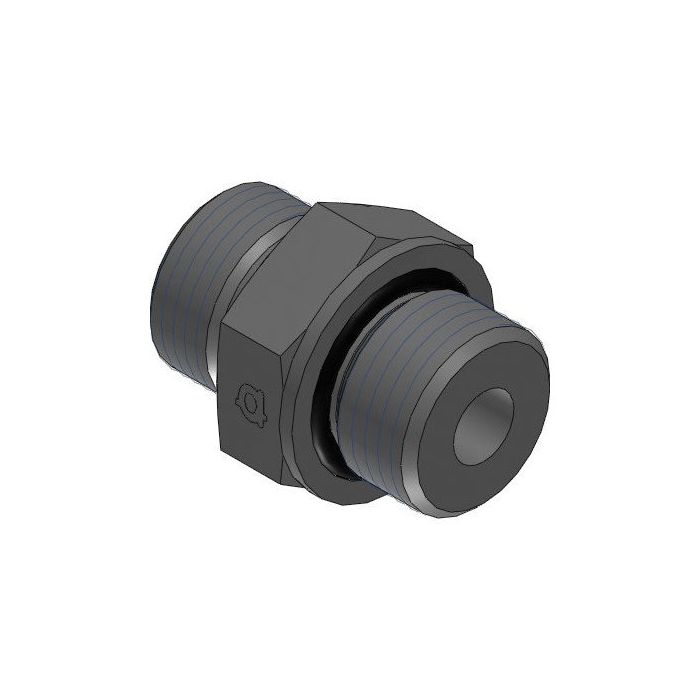

The Male Orfs X Male Bspp C/W Seal, crafted by Adaptall America, serves as a durable connector for various industrial needs. Constructed from premium steel, this straight adapter is designed to withstand demanding conditions and ensure steady performance.

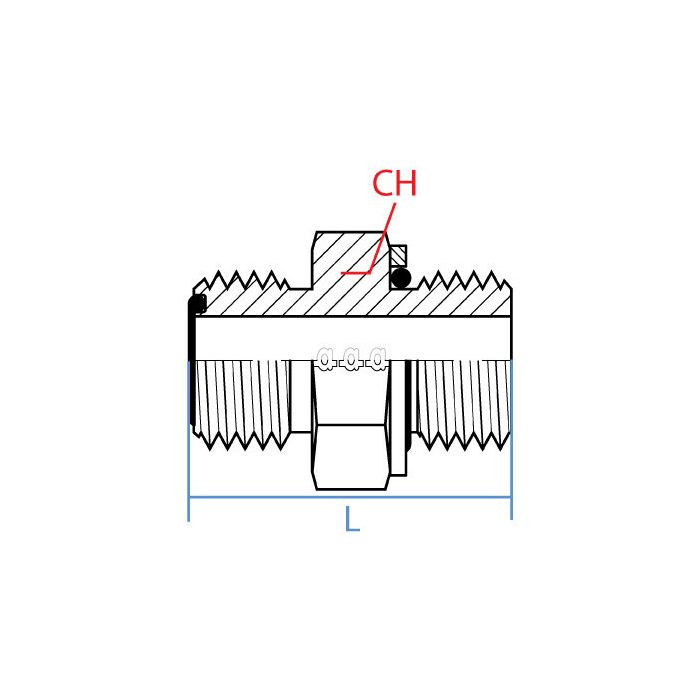

With a 1-13/16 - 12 UN male Orfs on one side and a G 1/2 - 14 male Bspp on the other, it offers flexible and reliable connectivity solutions. Measuring 45.6mm in length and 32mm in width, this adapter ensures precise and secure fitting.

Engineered without adjustable ends, calibration, or electrical components, it provides a straightforward and robust solution for industrial applications, minimizing the need for additional accessories or adjustments.

Supplier Part Number: 6002-12-08

Specifications

Brand
adapt-all
Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
Male BSP, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, SAE J1453
Dimensions
46.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
32 mm
Material
Steel
Material Construction
Carbon Steel
Series
6002 Series
Thread Size
1-3/16-12 x 1/2-14

Product Questions & Answers (2)

Question by: Neil S on Sep 6, 2025, 8:10 AM
Reckon this fitting would hold up okay in a hydraulic system running around 3000 psi?
Answer by: Customer Support on Sep 8, 2025, 6:55 AM
This straight adapter, crafted from durable steel, is designed for demanding industrial conditions where reliable performance is needed. However, the product data doesn't specify a pressure rating.
Question by: Clint B on May 12, 2025, 2:37 PM
trying to replace a straight adapter, will this one match up with a 3/4 ORFS male on one end and a 1/2 BSPP male on the other?
Answer by: Customer Support on May 14, 2025, 12:29 PM
Fit comes down to the thread callouts, and this adapter is a straight steel Male ORFS x Male BSPP with a 1-13/16 - 12 UN male ORFS end (listed as 3/4) and a G 1/2 - 14 male BSPP end (listed as 1/2).
