Male Orfs X Male Bspp

Description & Features

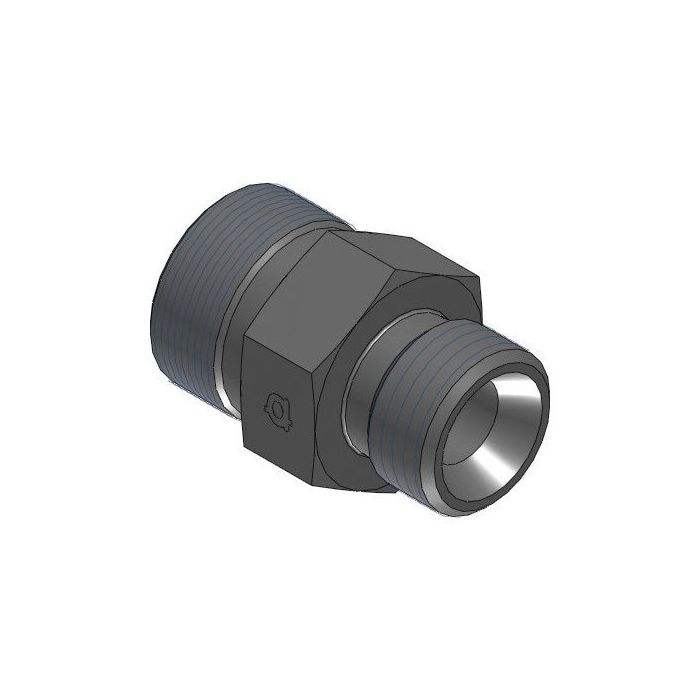

This steel straight fitting features a Male Orfs X Male Bspp connection, designed for secure and reliable hydraulic connections.

The Adaptall fitting has a 1" Side 1 size with a 1-7/16 - 12 UN callout and a 1" Side 2 size with a G 1 - 11 callout.

SKU: 6005-16-16

Supplier Part Number (MPN): 6005-16-16

Specifications

Brand
adapt-all
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male BSP, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, SAE J1453
Dimensions
52.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
41 mm
Material
Steel
Material Construction
Carbon Steel
Series
6005 Series
Thread Size
1-7/16-12 x 1-11

Product Questions & Answers (3)

Question by: Daryl G on Sep 30, 2025, 9:35 AM
Got a machine running BSPP ports and the hydraulic line coming off it terminates in an ORFS fitting. Would this adapter work to bridge those two together?
Answer by: Customer Support on Oct 1, 2025, 10:11 AM
That's what this one's built for. One end is a 1-inch Male ORFS with a 1-7/16-12 UN thread, and the other is a 1-inch Male BSPP with a G 1-11 thread. If your ORFS line and your BSPP port are both 1-inch, this straight steel fitting connects them directly with no additional hardware needed.
Question by: Eddie W on Oct 23, 2025, 10:18 AM
got a hose end that’s 1 inch ORFS, and the other side needs to go into a 1 inch BSPP port. is this the straight adapter for that?
Answer by: Customer Support on Oct 24, 2025, 4:14 PM
For tying those two thread styles together, this fitting is a straight steel adapter with a male ORFS on one end and a male BSPP on the other. Both ends are 1 inch, with a 1-7/16 - 12 UN callout on the ORFS side and a G 1 - 11 callout on the BSPP side.
Question by: Rod L on Nov 13, 2025, 8:55 PM
Will this fitting work with standard BSPP threads? Just making sure before I order a bunch.
Answer by: Customer Support on Nov 15, 2025, 3:45 PM
This fitting is designed with a Male BSPP (British Standard Parallel Pipe) connection on one side, which should be compatible with standard BSPP threads. The specific callout for that side is G 1 - 11.
