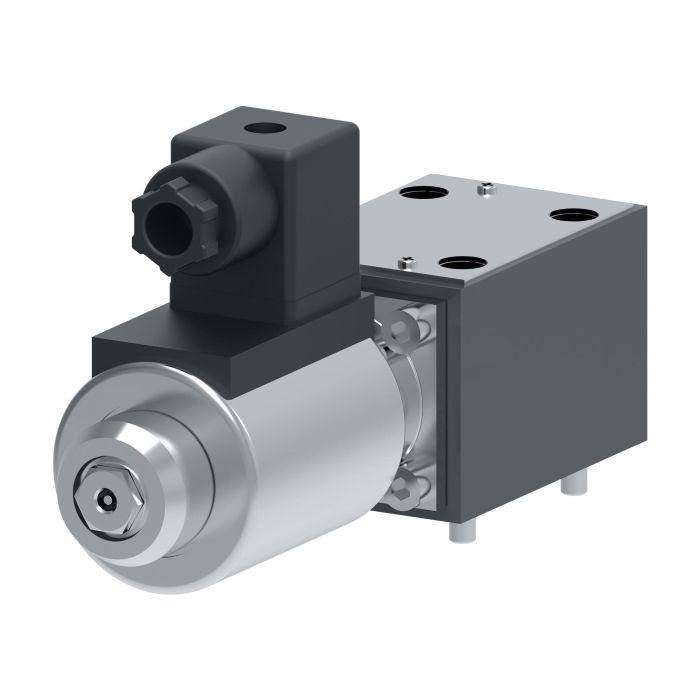

main product photo

DANFOSS / EATON DG3VP 3 103A V M U H 20

Ask A Question

Description & Features

Designed for machine tool and general industrial applications, the Danfoss / Eaton DG3VP 3 103A V M U H 20 is a single-stage directional control valve capable of handling flow rates up to 20 litres per minute. Part of the Vickers DG3VP series, it supports three- or four-way directional control and mounts on industry-standard surfaces for straightforward integration into existing hydraulic systems.

Buna-N seals provide reliable fluid compatibility across common hydraulic media, and the valve draws 38 watts, making it suitable for electrically actuated control circuits. This valve is a purpose-built solution for applications requiring precise directional flow management.

SKU: 6042893-002

Supplier Part Number (MPN): 6042893-002

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Body Material
Iron
Color
Gray
Configuration
Normally Closed
Connector Type
ISO 4400 DIN 43650 Plug
Dimensions
6.42 in L x 1.81 in W x 3.27 in H
Enclosure Type
IP65, IP67, IP69K
Finish
Zinc Nickel-Plated
Installation Type
Subplate/Manifold
Media
Petroleum Oil
Number of Ports/Ways
3
Number of Positions
2
Number of Stages
1
Performance
High
Seal Material
Buna-N
Series
DG3VP Series

Product Questions & Answers (1)

Question by: Jean M on Nov 12, 2025, 4:27 PM
Will this here directional control valve fit right onto a standard mounting surface, or will I need to do some adapting?
Answer by: Customer Support on Nov 14, 2025, 4:02 PM
Installation should be pretty straightforward. This valve is designed to mount directly onto industry-standard surfaces, so you shouldn't have to mess with any adapters to get it fitted.
